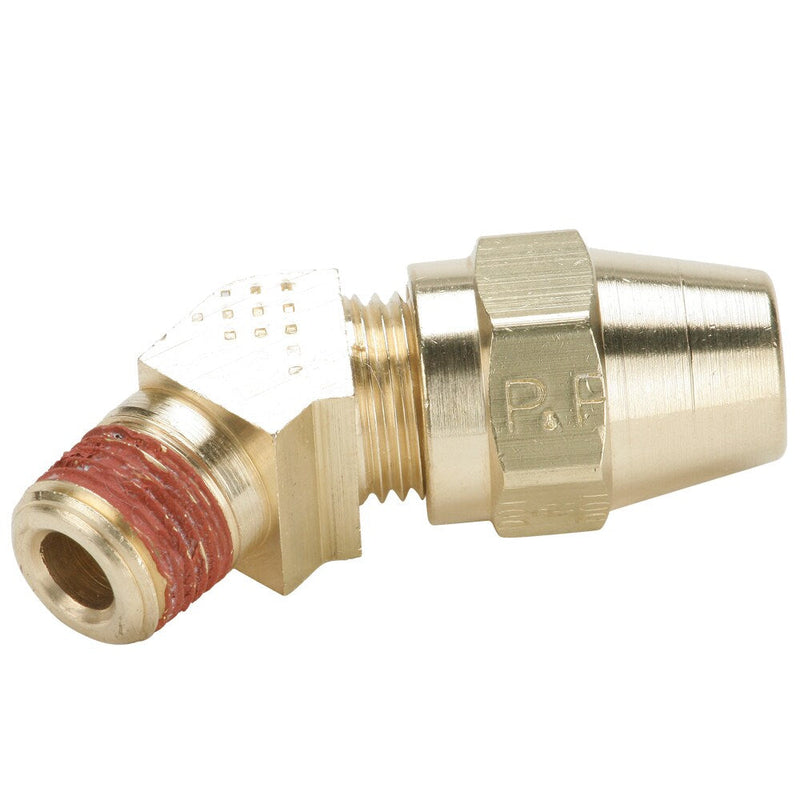

VS279AB-4-2 by Parker | Air Brake - AB Fittings | 1/4" Tube Size x 1/8" Male Pipe Thread x 7/16" Thread | 45° Elbow | Brass | Pack of 10

VS279AB-4-2 by Parker | Air Brake - AB Fittings | 1/4" Tube Size x 1/8" Male Pipe Thread x 7/16" Thread | 45° Elbow | Brass | Pack of 10

Save $76.79 Save $76.79
$191.98
$191.98 - $191.98
$191.98
$115.19
$115.19 - $115.19
$115.19

by Parker Hannifin
Air Brake – AB Fittings:45° Elbow VS279AB

Package Quantity: 10 Units

Specifications for Variant SKU: VS279AB-4-2 Parker | 10 |
Series: VS279AB Series
Shape (Orientation): 45° Elbow
Material(s): Brass
Special Properties: Fuel Grade, Reuseable
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246
  • Reusable
  • Pre-applied Thread Sealant
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Copper Air Brake Lines
  • Coolant Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 400 PSI (27.5 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:
  • Copper Air Brake Tubing
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (D)
VS279AB-4-2 1/4" 1/8" 7/16"-24 1.07" .49" .63" .189"
VS279AB-4-4 1/4" 1/4" 7/16"-24 1.18" .60" .85" .189"
VS279AB-6-2 3/8" 1/8" 17/32"-24 1.60" .71" .68" .189"
VS279AB-6-4 3/8" 1/4" 17/32"-24 1.64" .71" .85" .314"
VS279AB-6-6 3/8" 3/8" 17/32"-24 1.64" .75" .94" .314"
VS279AB-6-8 3/8" 1/2" 17/32"-24 1.67" .78" 1.16" .314"
VS279AB-8-6 1/2" 3/8" 11/16"-20 1.80" .84" .94" .408"
VS279AB-8-8 1/2" 1/2" 11/16"-20 1.83" .87" 1.16" .408"
VS279AB-10-6 5/8" 3/8" 13/16"-18 2.03" .94" .98" .408"
VS279AB-10-8 5/8" 1/2" 13/16"-18 2.13" 1.05" 1.16" .533"
VS279AB-12-8 3/4" 1/2" 1"-18 2.34" 1.10" 1.18" .533"
