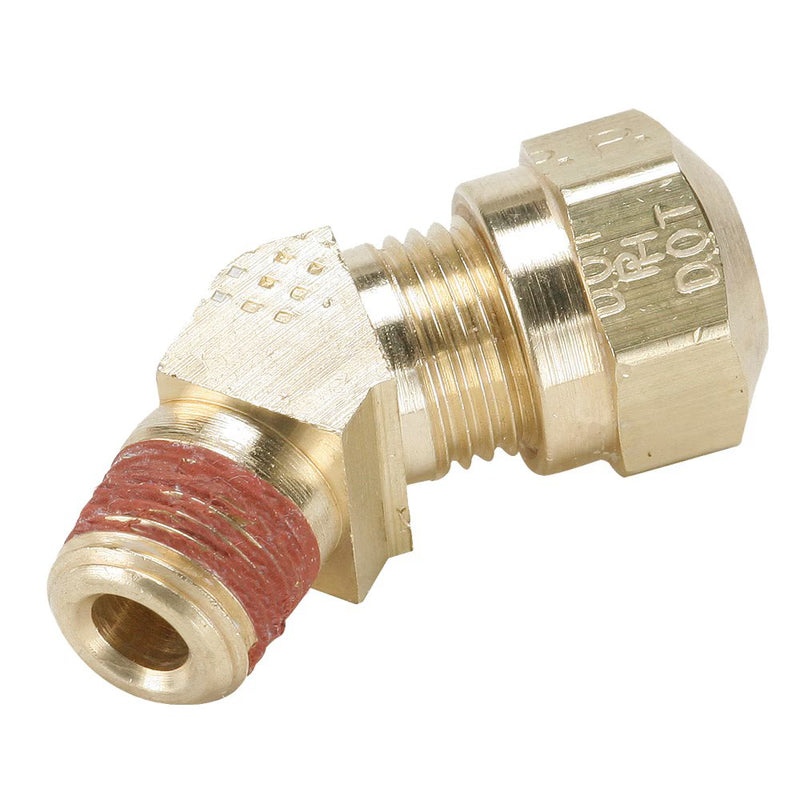

VS279NTA-10-6 by Parker | Air Brake–NTA® Fittings | 5/8" Tube Size x 3/8" Male Pipe Thread x 13/16" Thread | 45° Elbow | Brass | Pack of 10

VS279NTA-10-6 by Parker | Air Brake–NTA® Fittings | 5/8" Tube Size x 3/8" Male Pipe Thread x 13/16" Thread | 45° Elbow | Brass | Pack of 10

Save $183.19 Save $183.19
$457.98
$457.98 - $457.98
$457.98
$274.79
$274.79 - $274.79
$274.79

by Parker Hannifin
Air Brake–NTA® Fittings:45° Elbow VS279NTA

Package Quantity: 10 Units

Specifications for Variant SKU: VS279NTA-10-6 Parker | 10 |
Brand: Air Brake–NTA®
Series: VS279NTA Series
Shape (Orientation): 45° Elbow
Material(s): Brass
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (D)
VS279NTA-4-2 1/4" 1/8" 7/16"-24 .81" .48" .62" .137"
VS279NTA-4-4 1/4" 1/4" 7/16"-24 .93" .59" .84" .137"
VS279NTA-6-2 3/8" 1/8" 17/32"-24 1.17" .70" .66" .190"
VS279NTA-6-4 3/8" 1/4" 17/32"-24 1.17" .70" .84" .217"
VS279NTA-6-6 3/8" 3/8" 17/32"-24 1.21" .75" .94" .217"
VS279NTA-6-8 3/8" 1/2" 17/32"-24 1.24" .78" 1.16" .217"
VS279NTA-8-4 1/2" 1/4" 11/16"-20 1.36" .84" .94" .338"
VS279NTA-8-6 1/2" 3/8" 11/16"-20 1.36" .84" .94" .338"
VS279NTA-8-8 1/2" 1/2" 11/16"-20 1.39" .87" 1.16" .338"
VS279NTA-10-6 5/8" 3/8" 13/16"-18 1.43" .94" .98" .398"
VS279NTA-10-8 5/8" 1/2" 13/16"-18 1.42" .93" 1.16" .398"
VS279NTA-12-8 3/4" 1/2" 1"-18 1.61" 1.10" 1.18" .523"
