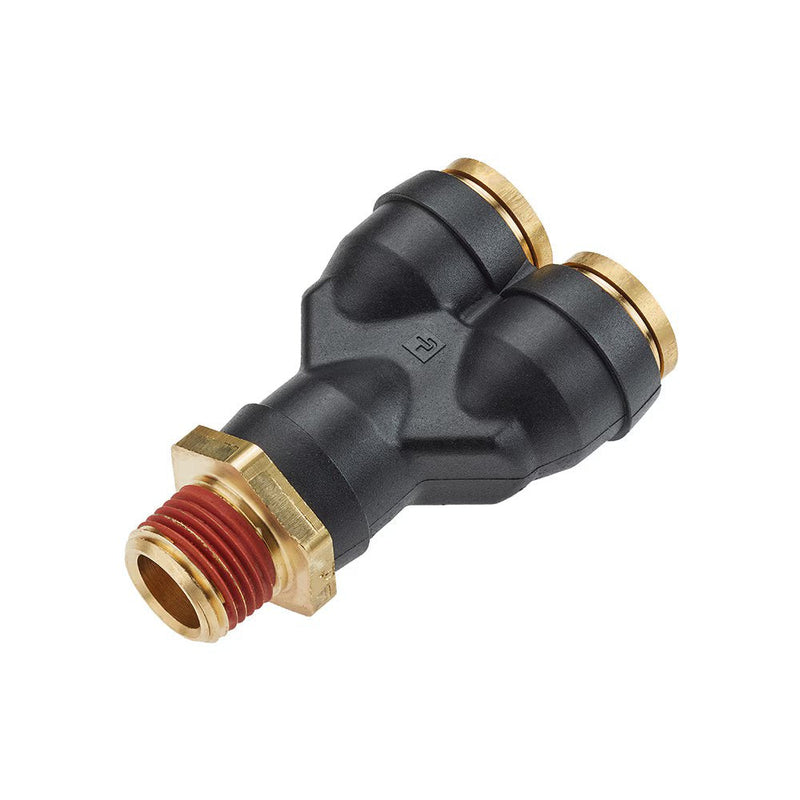

VS368PTCR-4-4 by Parker | Threaded Fitting | 1/4" Rigid Push-to-Connect union x 1/4" Male NPT Threads | 9/16" Hex | 2.12" Length | Vibra-Seal | Y | Composite | Pack of 10

VS368PTCR-4-4 by Parker | Threaded Fitting | 1/4" Rigid Push-to-Connect union x 1/4" Male NPT Threads | 9/16" Hex | 2.12" Length | Vibra-Seal | Y | Composite | Pack of 10

Save $112.45 Save $112.45
$281.12
$281.12 - $281.12
$281.12
$168.67
$168.67 - $168.67
$168.67

by Parker Hannifin
PTC & PTCR Composite Fittings:Union Y Male Connector VS368PTCR

Package Quantity: 10 Units

Specifications for Variant SKU: VS368PTCR-4-4 Parker | 10 |
Series: VS368PTCR Series
Shape (Orientation): Y
Material(s): Composite, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • HNBR O-ring
  • Stainless Steel Tube Support or Brass
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Composite Body – Strong, Lightweight, Compact and Impact Resistant
  • Plug-in configurations
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread L Hex (C) N N1
VS368PTCR-4-2 1/4" 1/8" 1.96" 9/16" 1.03" .50"
VS368PTCR-4-4 1/4" 1/4" 2.12" 9/16" 1.03" .5"
VS368PTCR-6-4 3/8" 1/4" 2.56" 3/4" 1.41" .68"
