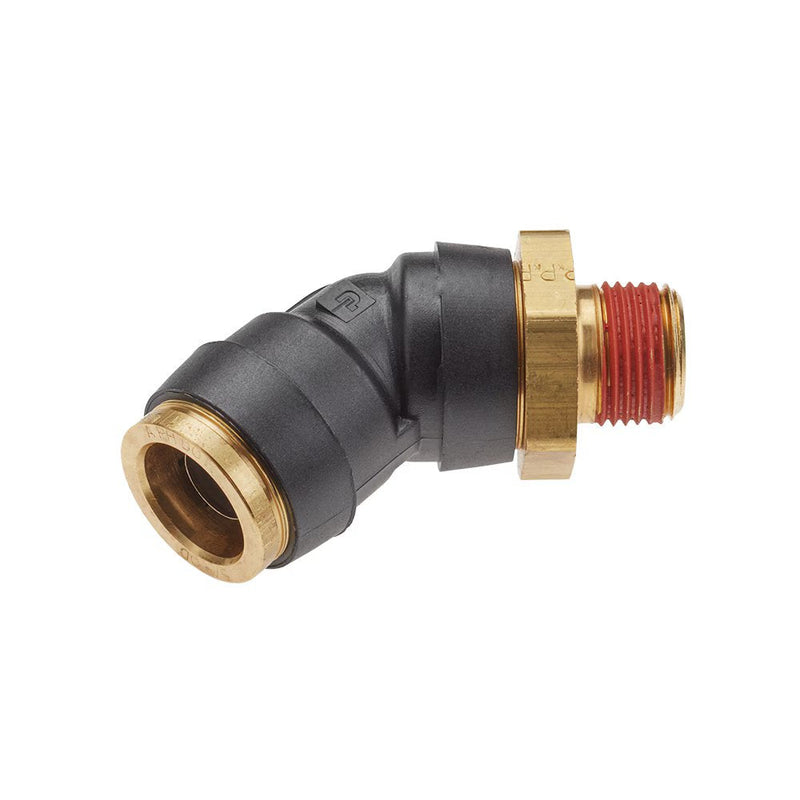

VS379PTCR-6-8 by Parker | Threaded Fitting | 3/8" Rigid Swivel Push-to-Connect x 1/2" Male NPT Threads | 7/8" Hex | 45° Elbow | Composite | Pack of 5

VS379PTCR-6-8 by Parker | Threaded Fitting | 3/8" Rigid Swivel Push-to-Connect x 1/2" Male NPT Threads | 7/8" Hex | 45° Elbow | Composite | Pack of 5

Save $12.56 Save $12.56
$63.96
$63.96 - $63.96
$63.96
$51.40
$51.40 - $51.40
$51.40

by Parker Hannifin
PTC & PTCR Composite Fittings:Male Elbow Swivel 45° VS379PTCR

Package Quantity: 5 Units

Specifications for Variant SKU: VS379PTCR-6-8 Parker | 5 |
Series: VS379PTCR Series
Shape (Orientation): 45° Elbow
Material(s): Composite, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Product Features:
  • Brass Collet
  • HNBR O-ring
  • Stainless Steel Tube Support or Brass
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Composite Body – Strong, Lightweight, Compact and Impact Resistant
  • Plug-in configurations
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread Hex (B) L M
VS379PTCR-4-2 1/4" 1/8" 9/16" .68" .91"
VS379PTCR-4-4 1/4" 1/4" 9/16" .68" 1.05"
VS379PTCR-4-6 1/4" 3/8" 9/16" .68" 1.05"
VS379PTCR-6-2 3/8" 1/8" 3/4" .89" .97"
VS379PTCR-6-4 3/8" 1/4" 3/4" .89" 1.10"
VS379PTCR-6-6 3/8" 3/8" 3/4" .89" 1.11"
VS379PTCR-6-8 3/8" 1/2" 7/8" .89" 1.32"
VS379PTCR-8-4 1/2" 1/4" 15/16" 1.03" 1.22"
VS379PTCR-8-6 1/2" 3/8" 15/16" 1.03" 1.24"
VS379PTCR-8-8 1/2" 1/2" 15/16" 1.03" 1.41"
VS379PTCR-10-6 5/8" 3/8" 1-1/16" 1.21" 1.43"
VS379PTCR-10-8 5/8" 1/2" 1-1/16" 1.21" 1.62"
VS379PTCR-12-8 3/4" 1/2" 1-3/16" 1.29" 1.72"
