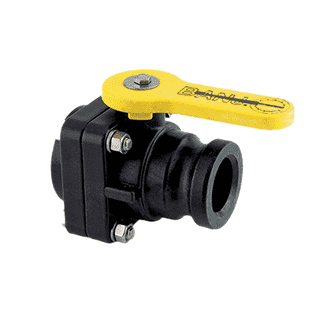

VSF200 Banjo Polypropylene 2" Standard Port Ball Valve "Stubby Valve" - 2" Male Adapter x 2" Female NPT - 1-1/2" Opening Thru Ball - 100 PSI

VSF200 by Banjo | 2" Standard Port Ball Valve "Stubby Valve" | 2" Male Adapter x 2" Female NPT | 1-1/2" Opening Thru Ball | 100 PSI | Polypropylene | Pack of 6

Save $32.56 Save $32.56
$293.04
$293.04 - $293.04
$293.04
$260.48
$260.48 - $260.48
$260.48

Banjo Valves
Bolted Ball Valves - 2" Standard Port Ball Valves "Stubby Valve" - Polypropylene - 4 Bolt Valves

Package Quantity: 6 EA

Specifications for Variant SKU: VSF200 Banjo | 6 |
Shape (Orientation): Straight
Ends Configuration: 2in Male Cam & Groove, 2in Female NPT
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • Stainless steel bolts.
  • Glass reinforced polypropylene.
  • Multiple design options.
  • Unique patented compact design.
  • Lightweight.
  • All PTFE seals.
Part Number Port Type End Type Opening
Thru Ball		 Max PSI Dimensions
A B C
VSF200 Standard Port Valve 2" Male Adapter x 2" Female NPT 1-1/2" 100 PSI 4.38" 4.72" 3.56"
VSMT200 Standard Port Valve 2" Male NPT x 2" Female NPT 1-1/2" 100 PSI 4.38" 4.50" 3.56"
VSFMT200 Standard Port Valve 2" Male Adapter x 2" Male NPT 1-1/2" 225 PSI 4.38" 5.88" 3.56"
VSFHB200 Standard Port Valve 2" Male Adapter x 2" Hose Barb 1-1/2" 100 PSI 4.38" 6.90" 3.56"
Replacement Parts for VSF200, VSMT200, VSFMT200, VSFHB200
Item Part Number Description Quantity Required
2 VS20152SH 2" Short Style Handle 1
3 V20021 Handle Washer 1
4 V20020 Handle Bolt 1
6 V20018 Lock Washer 4
7 V20019 3/8" 16 SS Hex Nut 4
8 V20010SS SS Body Bolt 4
9 V20060* Upper Stem Bushing 1
10 V20060* Thrust Bearing 1
11 VS20151 Stem 1
12 VS20258A* Seat 2
13 VS20255* Ball 1
14 V21204* Body Gasket 1

* Is included in Repair Kit NOTE: End plates and body style may vary from picture.

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
