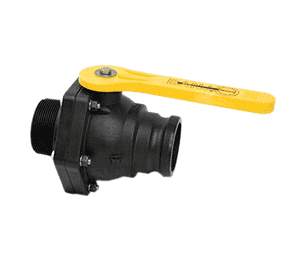

VSFMT300FP Banjo Polypropylene 3" Full Port Ball Valve "Stubby Valve" - 3" FP Male Adapter x 3" Male NPT - 3" Opening Thru Ball - 100 PSI (Box of 6)

VSFMT300FP by Banjo | 3" Full Port Ball Valve "Stubby Valve" | 3" FP Male Adapter x 3" Male NPT | 3" Opening Thru Ball | 100 PSI | Polypropylene | Pack of 6

Save $217.47

$1,024.91

$1,024.91 - $1,024.91

$1,024.91

$807.44

$807.44 - $807.44

$807.44

Banjo Valves
Bolted Ball Valves - 3" Full Port Ball Valves "Stubby Valve" - Polypropylene - 6 Bolt Valves

Package Quantity: 6 EA

Specifications for Variant SKU: VSFMT300FP Banjo \| 6 \|
Shape (Orientation):	Straight
Ends Configuration:	3in Male Cam & Groove, 3in Male NPT
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Applications:
Fluids
Features:
Stainless steel bolts Glass reinforced polypropylene FKM (viton type) body seals Unique patented compact design Lightweight All PTFE ball seats


Part Number	Port Type	End Type	Opening Thru Ball	Max PSI	Dimensions
Part Number	Port Type	End Type	Opening Thru Ball	Max PSI	A	B	C	D	E
VSFMT300FP	Full Port Valve	3" FP Male Adapter x 3" Male NPT	3"	100 PSI	9.25"	8.19"	7.31"	0.91"	7.34"
VSFMT300HSFP	Full Port Valve	3" FP Male Adapter x 3" Male NPT with Stainless Steel Ball, Stem & Handle	3"	100 PSI	9.88"	8.19"	7.31"	0.88"	7.31"


Replacement Parts for VSFMT300HSFP
Item	Part Number	Description	Quantity Required
1	V20018	3/8" SS Lock Washer	6
2	V20019	3/8" 16 SS Hex Nut	6
3	V25163	FKM (viton type) Stem O-Ring	1
4	V25160	Upper Stem Bushing	1
5	VS35258	3" FP Stubby Seat	2
6	V35265	FKM (viton type) Valve Body O-Ring	1
7	VSF35254	3" FP Stubby "F" Body	1
9	V20010SS	3/8" - 16 x 2" SS Bolt	6
10	V35255ASS	3" FP SS Ball	1
11	VS30151SS	SS Stem	1
12	VS30153SS	SS Handle	1
13	VS30101SS	SS Handle Stop	1
15	VSS30020	3/4"-16 SS Jam Nut	1
16	V25060	Thrust Washer	1
17	VS30021	Washer	1

* Short handles: Dimension C = 5.25"

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
