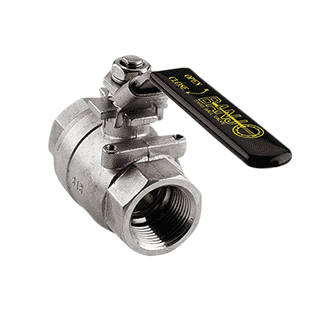

VSS075 Banjo 316 Stainless Steel Two Piece Ball Valve - Full Port - 3/4" Female NPT x 3/4" Female NPT - 3/4" Opening Thru Ball - 1000 PSI

VSS075 by Banjo | Two Piece Ball Valve | Full Port | 3/4" Female NPT x 3/4" Female NPT | 3/4" Opening Thru Ball | 1000 PSI | 316 Stainless Steel

Save $17.25

$112.80

$112.80 - $112.80

$112.80

$95.55

$95.55 - $95.55

$95.55

Banjo Valves - Two Piece Ball Valves - 316 Stainless Steel

Specifications for Variant SKU: VSS075 Banjo
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s):	316 Stainless Steel
Seal Material(s):	PTFE

Applications:
Fluids
Features:
316 stainless steel Blow out proof stem All valves 100% tested by air, underwater at 100 PSI in open and closed positions Latch locking handle performs in both open and closed positions Mounting pad PTFE seals and seats All full port design
Other Components:
Replacement Handles Replacement Parts

Part Number	End Type	Port Type	Handle Type	Opening Thru Ball	Max PSI
VSS025	1/4" Female NPT x 1/4" Female NPT	Full Port	Straight	1/4"	1000 PSI
VSS038	3/8" Female NPT x 3/8" Female NPT	Full Port	Straight	3/8"	1000 PSI
VSS050	1/2" Female NPT x 1/2" Female NPT	Full Port	Straight	1/2"	1000 PSI
VSS075	3/4" Female NPT x 3/4" Female NPT	Full Port	Straight	3/4"	1000 PSI
VSS100	1" Female NPT x 1" Female NPT	Full Port	Straight	1"	1000 PSI
VSS150	1-1/2" Female NPT x 1-1/2" Female NPT	Full Port	Straight	1-1/2"	1000 PSI
VSS200	2" Female NPT x 2" Female NPT	Full Port	Straight	2"	1000 PSI
VSS300	3" Female NPT x 3" Female NPT	Full Port	Straight	3"	1000 PSI

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
