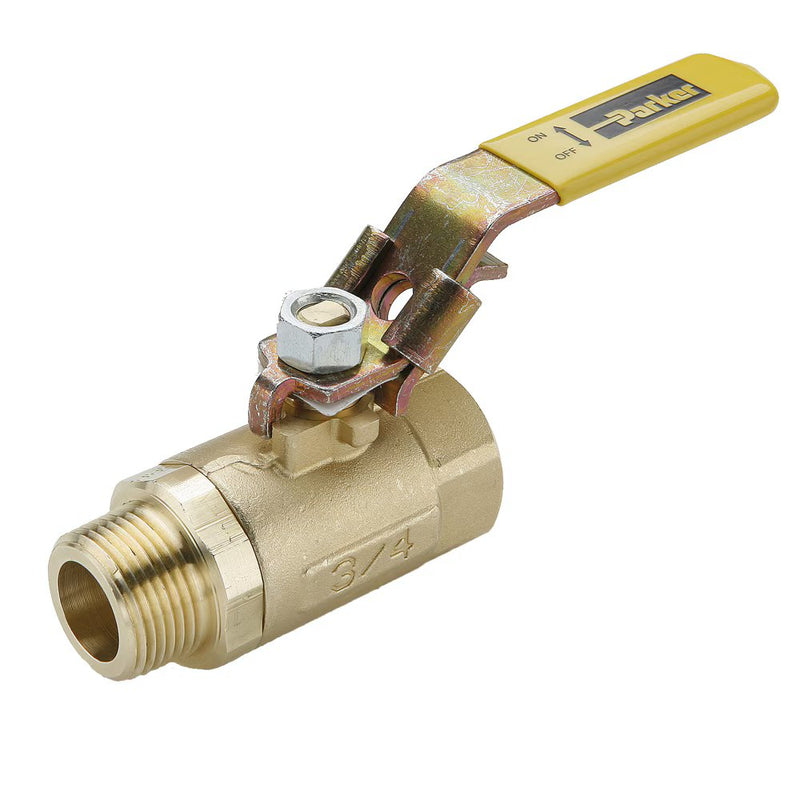

VVP501P-12 by Parker | Ball Valves | 3/4" Female PTF Pipe Thread x 3/4" Male NPTF Pipe Thread | 1-1/4" Hex (B) | 1-5/16" Hex (C) | 5.83" Length | Straight | Brass | Pack of 8

Save $49.85

$618.49

$618.49 - $618.49

$618.49

$568.64

$568.64 - $568.64

$568.64

by Parker Hannifin
Ball Valves Brass Series 501:OSHA 29 CFR Part 1910 Vented, Locking Handle, Male-Female Pipe Ends VVP501P

Package Quantity: 8 Units

Quantity

Specifications for Variant SKU: VVP501P-12 Parker \| 8 \|
Series:	VVP501P Series
Shape (Orientation):	Straight
Material(s):	Brass, Chrome-Plated Brass, Steel
Seal Material(s):	PTFE
Special Properties:	Valved

Specification:
Product Features:	Forged brass body Chrome plated brass ball PTFE seats/seals Steel handle
Style:	V-Valve VP-Valve, padlocking handle VV-Valve, vented VVP-Valve, vented, padlocking handle
Type:	501-Male/Female PTF ports
Material:	P-Brass PN-Nickel plated
Options:	01-Stainless Steel Ball & Stem 02-Stainless Steel Handle & Nut 03-Stainless Steel Ball, Stem, Handle & Nut 04-Tee Handle 08-Unmarked yellow vinyl handle cover 21-Oval Handle
Temperature Range:	0° to +350° F (-17.7° to +176.6° C)
Pressure Range:	600 WOG , Cold Non-shock Saturated Steam up to 150 PSI (10.3 bar) Vacuum Service to 29 Inches Hg Vented up to 250 PSI (17.2 bar) XV501PCHP up to 2000PSI (137.8 bar)


Part Number	Female Pipe Thread (PTF)	Male Pipe Thread (NPTF)	Hex (B)	Hex (C)	K	H	L	M	N	Flow Diameter (D)
VVP501P-4	1/4"	1/4"	15/16"	15/16"	1.67"	3.96"	5.46"	2.59"	2.47"	.344"
VVP501P-6	3/8"	3/8"	15/16"	15/16"	1.67"	3.96"	5.46"	2.59"	2.47"	.375"
VVP501P-8	1/2"*	1/2"*	1-1/16"	1-1/16"	1.98"	3.96"	5.75"	2.95"	2.58"	.500"
VVP501P-12	3/4"**	3/4"*	1-1/4"	1-5/16"	2.03"	3.96"	5.83"	3.00"	2.81"	.685"
VVP501P-16	1"**	1"*	1-1/2"	1-9/16"	2.43"	3.96"	6.19"	3.60"	3.08"	.875"

*PTF Special Short. **PTF SPL Extra Short

For use with 5/16" Ø shank lock
