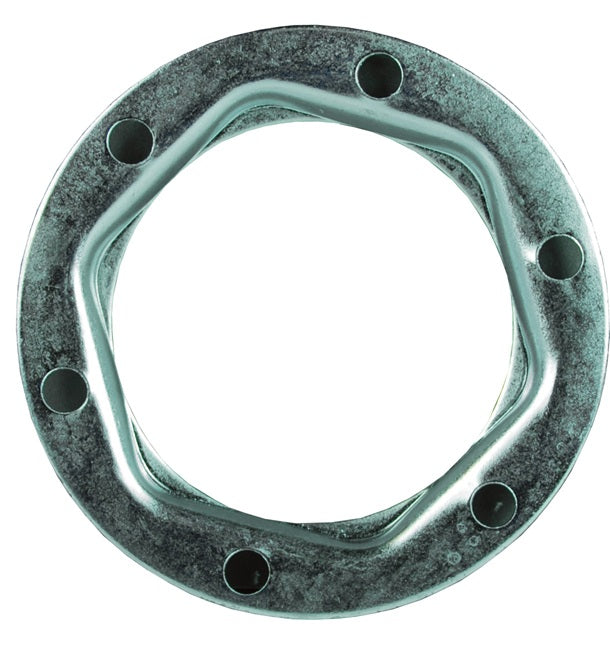

W12-BMF by Dixon Valve | Hydraulic Quick Disconnect Coupling | W-Series | Wingstyle Interchange Plug Mounting Flange | Fits 1-1/2" Body Size | Steel

Save $3.79

$9.47

$9.47 - $9.47

$9.47

$5.68

$5.68 - $5.68

$5.68

Dixon Valve & Coupling
Hydraulic Coupling: W-Series Wingstyle Interchange Plug Mounting Flange

Specifications for Variant SKU: W12-BMF Dixon
Series:	W-Series
Shape (Orientation):	Straight

Compatibility & Interchange:	Danfoss Eaton Aeroquip 5100-Series, Parker 6100-Series Snap-Tite 78-Series, Faster Series-FB, Safeway S51-Series
Features:	Nipple mounting flange.
Construction:	Material: Steel
Additional Information:	For W-Series socket and plug diagrams, please see: Dixon Valve Quick Disconnect W-Series.PDF For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

W-Series \| Wingstyle Interchange (Connected) Rated Pressure Chart
Body Size	Coupler/Plug
Body Size	Max. Working		Burst
1/4"	3,000 PSI	207 Bar	14,000 PSI	965 Bar
3/8"	3,000 PSI	207 Bar	13,000 PSI	897 Bar
3/4"	3,000 PSI	207 Bar	13,000 PSI	897 Bar
1"	4,000 PSI	276 Bar	16,000 PSI	1,103 Bar
1-1/4"	3,000 PSI	207 Bar	12,000 PSI	828 Bar
1-1/2"	2,500 PSI	172 Bar	10,000 PSI	690 Bar

W-Series \| Wingstyle Interchange Plug Mounting Flange

Part Number	Body Size	Bolt Hole Size	Material
W6-BMF	3/4"	0.201"	Steel
W8-BMF	1"	0.201"	Steel
W10-BMF	1-1/4"	0.201"	Steel
W12-BMF	1-1/2"	0.201"	Steel
