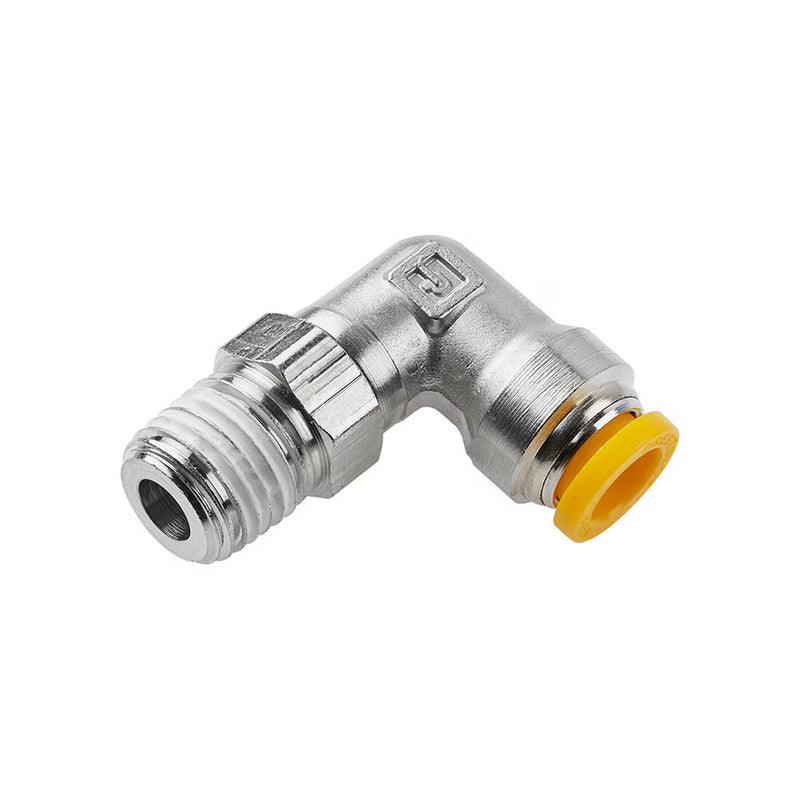

W169PLP-4M-4R by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fittings | 4mm Swivel x 1/4" Male BSPT Thread | 9/16" Hex | 19.05mm Length (L) | 28.50mm Length (N) | 3.962mm Flow Dia. | 90° Elbow | Nickel-Plated Brass

Save $4.19

$10.48

$10.48 - $10.48

$10.48

$6.29

$6.29 - $6.29

$6.29

by Parker Hannifin
Push-to-Connect Fittings:W169PLP Male Elbow Swivel 90° – BSPT

Specifications for Variant SKU: W169PLP-4M-4R Parker
Series:	W169PLP Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Flame Resistant Release Button, Swivel

Product Features:	Stainless steel grab ring Nickel-plated brass body Nitrile seal Flame resistant release button Corrosion resistance Inch and metric tube connections NPT, BSPP, BSPT, and metric threads Meets UL94 V-0 Flame Resistance Standard
Markets:	Industrial Automotive Climate Control Welding Robotic Welding
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range:	0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating:	28" Hg
Compatible Tubing:	95FR Microweld Polyethylene Polypropylene Semi Rigid Nylon Rigid Nylon Polyurethane 95 Durometer Shore A


Part Number	Tube Size	Thread BSPT	Hex (C)	L	N	Flow Diameter (D)
W169PLP-4M-2R	4 mm	1/8"	7/16"	19.05 mm	23.93 mm	3.175 mm
W169PLP-4M-4R	4 mm	1/4"	9/16"	19.05 mm	28.50 mm	3.962 mm
W169PLP-6M-2R	6 mm	1/8"	7/16"	19.13 mm	22.91 mm	3.962 mm
W169PLP-6M-4R	6 mm	1/4"	9/16"	19.13 mm	27.48 mm	3.962 mm
W169PLP-6M-6R	6 mm	3/8"	11/16"	19.13 mm	29.74 mm	3.962 mm
W169PLP-8M-2R	8 mm	1/8"	9/16"	24.20 mm	26.16 mm	6.350 mm
W169PLP-8M-4R	8 mm	1/4"	9/16"	24.20 mm	31.75 mm	6.350 mm
W169PLP-8M-6R	8 mm	3/8"	11/16"	24.20 mm	31.75 mm	6.350 mm
W169PLP-10M-4R	10 mm	1/4"	9/16"	23.75 mm	31.49 mm	6.350 mm
W169PLP-10M-6R	10 mm	3/8"	11/16"	23.75 mm	31.75 mm	6.350 mm
W169PLP-10M-8R	10 mm	1/2"	7/8"	23.75 mm	37.69 mm	6.350 mm
W169PLP-12M-4R	12 mm	1/4"	11/16"	27.63 mm	32.86 mm	7.950 mm
W169PLP-12M-6R	12 mm	3/8"	11/16"	27.63 mm	33.78 mm	9.525 mm
W169PLP-12M-8R	12 mm	1/2"	7/8"	27.63 mm	38.96 mm	9.525 mm
