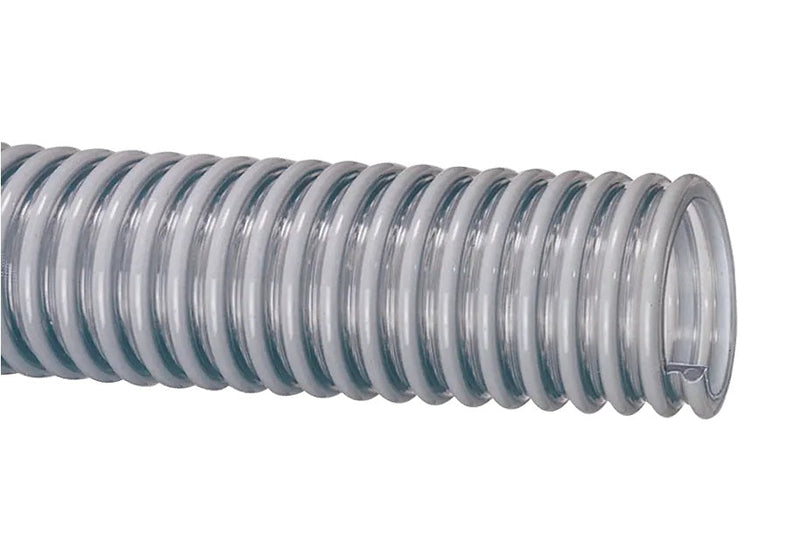

W300X100 Tigerflex® by Kuriyama | W™ Series | Heavy-Duty Liquid Suction Hose | PVC | 3" ID | 3.64" OD | 100ft Length

W300X100 Tigerflex® by Kuriyama | W™ Series | Heavy-Duty Liquid Suction Hose | PVC | 3" ID | 3.64" OD | 100ft Length

Save $534.19 Save $534.19
$1,302.19
$1,302.19 - $1,302.19
$1,302.19
$768.00
$768.00 - $768.00
$768.00
p>Kuriyama of America Inc.
Tigerflex® | W™ Series | Heavy-Duty Liquid Suction Hose | PVC

Designed for extreme cold environments (sizes 4"-16").

Ideal for fish suction, gold dredging, slurry transfer, and heavy-duty water suction with dewatering and trash pumps.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: W300X100 Kuriyama | 100 |
Brand: Tigerflex
Series: W Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 3in
Outer Diameter: 3.64in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection
Heavy-Duty PVC Suction Hose

Kuriyama Tigerflex™ W Series

Heavy-duty transparent PVC suction hose designed for fish suction, gold dredging, dewatering, slurry handling and water-suction applications, with cold-flexible construction on larger sizes.

✓

Cold Flex

Sizes 4 inches through 16 inches remain flexible in sub-zero temperatures

◎

See-the-Flow

Transparent construction allows visual confirmation of material flow

☰

Convoluted Cover

Provides increased hose flexibility

★

Made in USA

Manufactured in the United States

1

What is this product used for?
  • Extreme cold conditions for sizes 4 inches through 16 inches
  • Fish suction
  • Gold dredging
  • Rental and construction dewatering pumps
  • Trash pumps
  • Slurry handling
  • Heavy-duty water suction
2

What are the key specifications?
Tube

PVC

Reinforcement

Rigid PVC helix

Cover

Convoluted outer cover

Temperature Range for Sizes 1 Inch Through 3 Inches

-4°F (-20°C) to +150°F (+65°C)

Temperature Range for Sizes 4 Inches Through 16 Inches

-40°F (-40°C) to +150°F (+65°C)

Compliance

Phthalate free and RoHS

3

What are the main product features?
  • Cold-Flex Materials on 4-Inch Through 16-Inch Sizes — The hose remains flexible in sub-zero temperatures.
  • Transparent Construction — “See-the-flow” design allows visual confirmation of material flow.
  • Convoluted Outer Cover — Provides increased hose flexibility.
  • Made in the USA — Manufactured in the United States.
4

Which sizes and lengths are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
W100X100 1" 25.4 1.30" 33.0 55 PSI 35 PSI Full 28 in Hg 1" 100 0.21
W125X100 1-1/4" 31.7 1.60" 40.6 50 PSI 30 PSI Full 28 in Hg 2" 100 0.28
W150X100 1-1/2" 38.1 1.85" 47.0 50 PSI 30 PSI Full 28 in Hg 2" 100 0.34
W200X100 2" 50.8 2.40" 61.0 50 PSI 30 PSI Full 28 in Hg 3" 100 0.52
W250X100 2-1/2" 63.5 2.99" 75.9 45 PSI 25 PSI Full 28 in Hg 4" 100 0.77
W300X100 3" 76.2 3.64" 92.5 45 PSI 25 PSI Full 28 in Hg 6" 100 1.18
W400X100 4" 101.6 4.76" 121.0 35 PSI 18 PSI Full 28 in Hg 8" 100 1.92
W500X100 5" 127.0 5.75" 146.0 35 PSI 18 PSI 28 in Hg 25 in Hg 12" 100 2.95
W600X100 6" 152.4 7.00" 177.8 30 PSI 15 PSI 28 in Hg 25 in Hg 14" 100 3.76
W800X40 8" 203.2 9.18" 233.2 30 PSI 15 PSI 28 in Hg 25 in Hg 24" 40 5.99
W1000X40 10" 254.0 11.56" 293.5 25 PSI 12 PSI 28 in Hg 25 in Hg 39" 40 9.74
W1200X40 12" 304.8 13.64" 346.5 20 PSI 10 PSI 28 in Hg 25 in Hg 59" 40 12.77
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 100-foot lengths for sizes 1 inch through 6 inches and 40-foot lengths for the 8-inch, 10-inch and 12-inch sizes.
