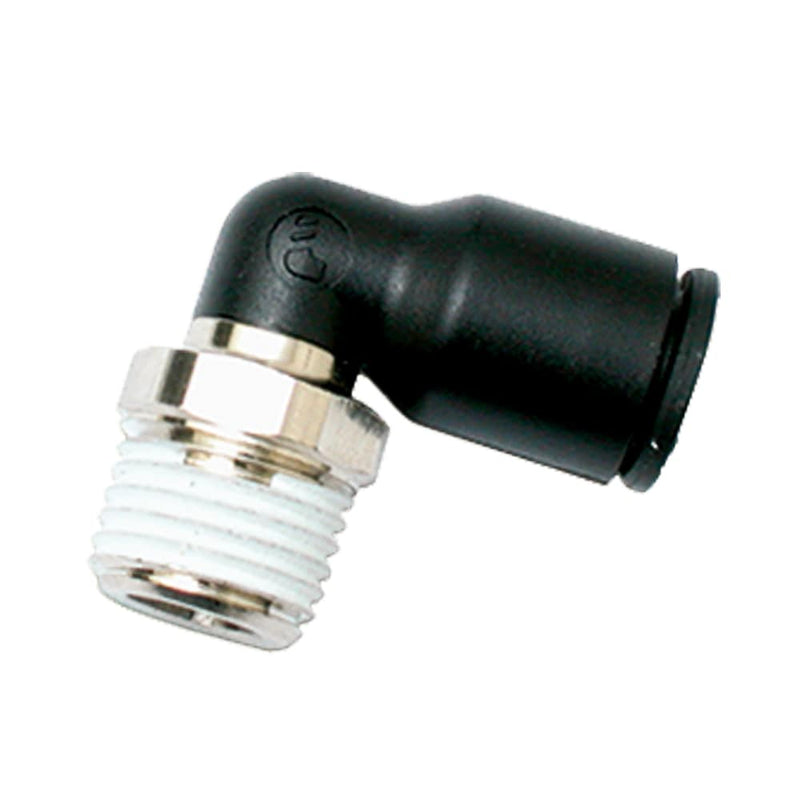

W369PLP-10M-4R by Parker | Prestolok PLP Composite Push-to-Connect Fittings | 10mm Push-to-Connect x 1/4" Male BSPT Thread | 15mm Hex | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $18.33

$137.93

$137.93 - $137.93

$137.93

$119.60

$119.60 - $119.60

$119.60

by Parker Hannifin
Prestolok PLP Composite Push-to-Connect Fittings:W369PLP Male Elbow - BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: W369PLP-10M-4R Parker \| 10 \|
Series:	W369PLP Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	BSPP	Hex (C)	H	L
W369PLP-4M-2R	4 mm	1/8"	10 mm	13.5 mm	14.0 mm
W369PLP-4M-4R	4 mm	1/4"	14 mm	14.0 mm	14.0 mm
W369PLP-4M-6R	4 mm	3/8"	17 mm	13.5 mm	14.0 mm
W369PLP-6M-2R	6 mm	1/8"	10 mm	15.5 mm	16.0 mm
W369PLP-6M-4R	6 mm	1/4"	14 mm	16.0 mm	16.0 mm
W369PLP-6M-6R	6 mm	3/8"	17 mm	16.0 mm	16.0 mm
W369PLP-6M-8R	6 mm	1/2"	21 mm	16.5 mm	16.0 mm
W369PLP-8M-2R	8 mm	1/8"	10 mm	19.0 mm	23.0 mm
W369PLP-8M-4R	8 mm	1/4"	14 mm	18.0 mm	23.0 mm
W369PLP-8M-6R	8 mm	3/8"	17 mm	18.0 mm	23.0 mm
W369PLP-8M-8R	8 mm	1/2"	21 mm	19.5 mm	23.0 mm
W369PLP-10M-2R	10 mm	1/8"	15 mm	23.0 mm	26.5 mm
W369PLP-10M-4R	10 mm	1/4"	15 mm	22.0 mm	26.5 mm
W369PLP-10M-6R	10 mm	3/8"	17 mm	22.0 mm	26.5 mm
W369PLP-10M-8R	10 mm	1/2"	21 mm	22.0 mm	26.5 mm
W369PLP-12M-4R	12 mm	1/4"	15 mm	25.0 mm	31.0 mm
W369PLP-12M-6R	12 mm	3/8"	17 mm	25.0 mm	31.0 mm
W369PLP-12M-8R	12 mm	1/2"	21 mm	25.0 mm	31.0 mm
W369PLP-14M-6R	14 mm	3/8"	20 mm	30.5 mm	35.5 mm
W369PLP-14M-8R	14 mm	1/2"	24 mm	28.5 mm	35.5 mm
W369PLP-16M-6R	16 mm	3/8"	27 mm	53.0 mm	39.0 mm
W369PLP-16M-8R	16 mm	1/2"	27 mm	53.0 mm	39.0 mm
