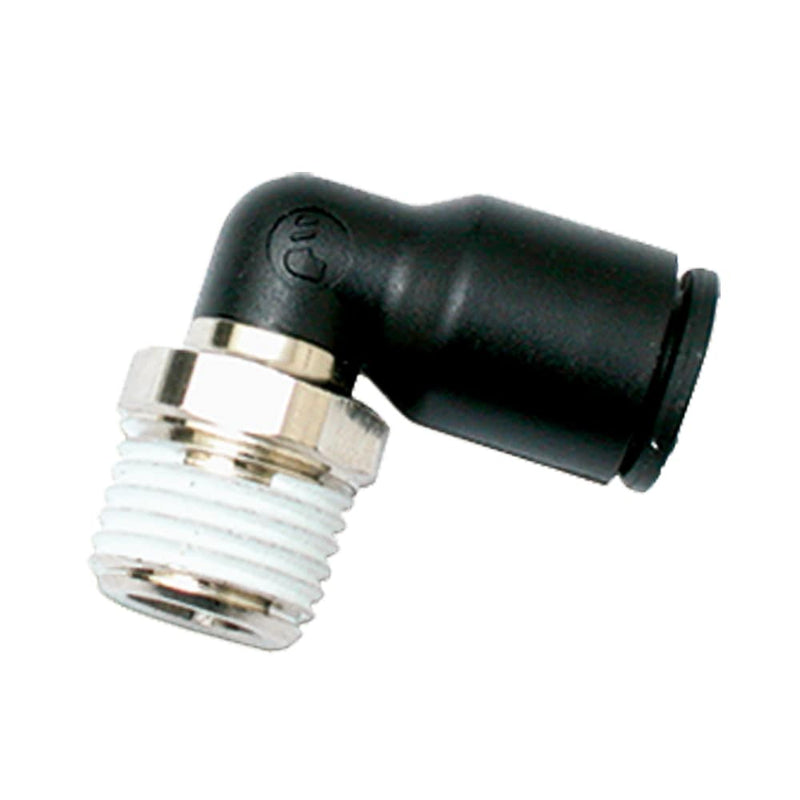

W369PLP-10M-8 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 10mm Tube Size x 1/2" Male NPT Thread | 22mm Hex | .91" Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $20.45

$145.25

$145.25 - $145.25

$145.25

$124.80

$124.80 - $124.80

$124.80

by Parker Hannifin
Push-to-Connect Fittings:W369PLP Male Elbow - NPT

Package Quantity: 10 Units

Specifications for Variant SKU: W369PLP-10M-8 Parker \| 10 \|
Series:	W369PLP Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	Thread NPT	Hex (C)	H	L
W369PLP-4M-2	4 mm	1/8"	11 mm	.53"	.55"
W369PLP-4M-4	4 mm	1/4"	14 mm	.55"	.55"
W369PLP-6M-2	6 mm	1/8"	11 mm	.61"	.63"
W369PLP-6M-4	6 mm	1/4"	14 mm	.63"	.63"
W369PLP-8M-2	8 mm	1/8"	11 mm	.75"	.91"
W369PLP-8M-4	8 mm	1/4"	14 mm	.71"	.91"
W369PLP-8M-6	8 mm	3/8"	18 mm	.73"	.91"
W369PLP-10M-4	10 mm	1/4"	15 mm	.91"	1.04"
W369PLP-10M-6	10 mm	3/8"	18 mm	.87"	1.04"
W369PLP-10M-8	10 mm	1/2"	2211 mm	.91"	1.04"
W369PLP-12M-6	12 mm	3/8"	18 mm	.98"	1.22"
W369PLP-12M-8	12 mm	1/2"	22 mm	1.02"	1.22"
