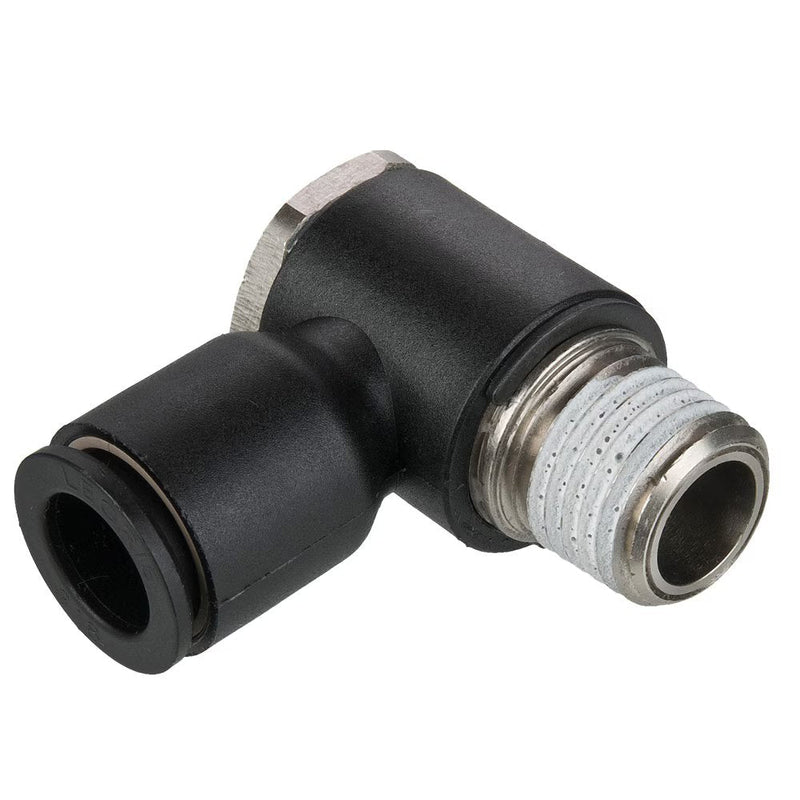

W369PLPBJ-10M-6R by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 10mm Banjo x 3/8" Male BSPT Thread | 21mm Hex | 31.0mm Length (L2) | Glass-Reinforced Nylon | Pack of 10

Save $22.80

$165.33

$165.33 - $165.33

$165.33

$142.53

$142.53 - $142.53

$142.53

by Parker Hannifin
Push-to-Connect Fittings:W369PLPBJ Banjo - BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: W369PLPBJ-10M-6R Parker \| 10 \|
Series:	W369PLPBJ Series
Shape (Orientation):	90 Degree
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	BSPT	Hex (C)	H	L2
W369PLPBJ-6M-2R	6 mm	1/8"	13 mm	18.5 mm	20.0 mm
W369PLPBJ-6M-4R	6 mm	1/4"	17 mm	22.5 mm	22.0 mm
W369PLPBJ-8M-2R	8 mm	1/8"	13 mm	18.5 mm	25.0 mm
W369PLPBJ-8M-4R	8 mm	1/4"	17 mm	22.5 mm	27.0 mm
W369PLPBJ-10M-4R	10 mm	1/4"	17 mm	22.5 mm	29.0 mm
W369PLPBJ-10M-6R	10 mm	3/8"	21 mm	26.5 mm	31.0 mm
W369PLPBJ-12M-4R	12 mm	1/4"	21 mm	26.5 mm	34.5 mm
W369PLPBJ-12M-6R	12 mm	3/8"	21 mm	26.5 mm	34.5 mm
