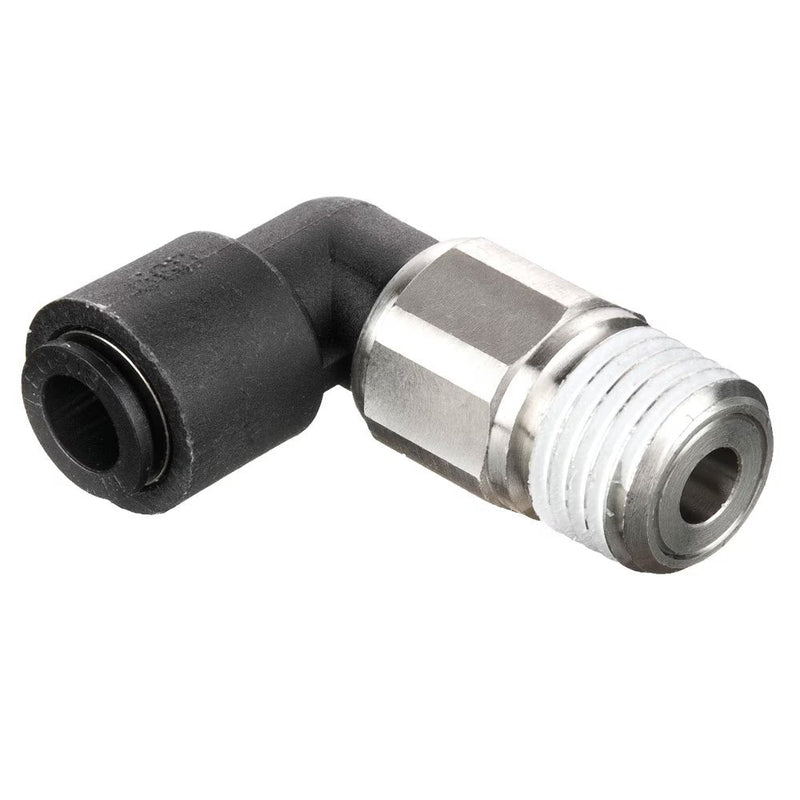

W369PLPO-10M-6R by Parker | Oscillating Elbows | 10 mm Tube Size x 3/8" Male BSPT Thread | 90° Elbow | Glass Reinforced Nylon | Pack of 10

W369PLPO-10M-6R by Parker | Oscillating Elbows | 10 mm Tube Size x 3/8" Male BSPT Thread | 90° Elbow | Glass Reinforced Nylon | Pack of 10

Save $60.03 Save $60.03
$544.70
$544.70 - $544.70
$544.70
$484.67
$484.67 - $484.67
$484.67

by Parker Hannifin
Oscillating Elbows:W369PLPO Oscillating Compact Elbow - BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: W369PLPO-10M-6R Parker | 10 |
Series: W369PLPO Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Oscillating Elbow, Swivel
Product Features:
  • Glass reinforced nylon 6.6 body
  • Nylon collar
  • Stainless Steel gripping ring
  • Nitrile D seal
  • Nitrile O-ring
  • Nickel-plated brass threads
Markets:
  • Pneumatics
  • Robotic
  • Automation
  • Semi-conductors
  • Packaging
  • Textile
Applications:
  • Air
  • Inert Gases
  • Cutting Fluids
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Temperature Range: -4° to +175° F (-20° to +79.4° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
Part Number Tube Size BSPT F G H L
W369PLPO-4M-2R 4 mm 1/8" 12 mm 11.0 mm 22.0 mm 17.5 mm
W369PLPO-6M-2R 6 mm 1/8" 14 mm 14.0 mm 26.5 mm 20.5 mm
W369PLPO-6M-4R 6 mm 1/4" 14 mm 14.0 mm 23.5 mm 20.5 mm
W369PLPO-8M-2R 8 mm 1/8" 17 mm 16.0 mm 32.0 mm 237.5 mm
W369PLPO-8M-4R 8 mm 1/4" 17 mm 16.0 mm 29.0 mm 23.5 mm
W369PLPO-8M-6R 8 mm 3/8" 17 mm 16.0 mm 25.0 mm 23.5 mm
W369PLPO-10M-4R 10 mm 1/4" 19 mm 19.5 mm 37.5 mm 29.0 mm
W369PLPO-10M-6R 10 mm 3/8" 19 mm 19.5 mm 33.5 mm 29.0 mm
W369PLPO-12M-4R 12 mm 1/4" 21 mm 22.0 mm 44.5 mm 33.5 mm
W369PLPO-12M-6R 12 mm 3/8" 21 mm 22.0 mm 41.0 mm 33.5 mm
