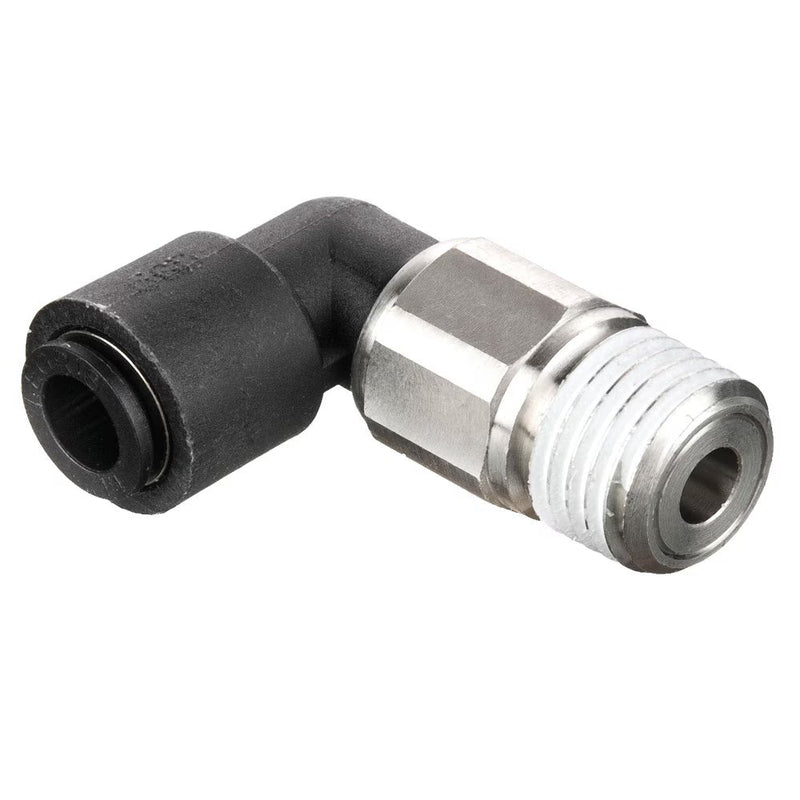

W369PLPO-4M-2 by Parker | Oscillating Elbows | 5/32" Tube Size x 1/8" NPT Thread | 90° Elbow | Glass Reinforced Nylon | Pack of 10

Save $29.94

$247.27

$247.27 - $247.27

$247.27

$217.33

$217.33 - $217.33

$217.33

by Parker Hannifin
Oscillating Elbows:W369PLPO Oscillating Compact Elbow - NPT

Package Quantity: 10 Units

Specifications for Variant SKU: W369PLPO-4M-2 Parker \| 10 \|
Series:	W369PLPO Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Oscillating Elbow, Swivel

Product Features:	Glass reinforced nylon 6.6 body Nylon collar Stainless Steel gripping ring Nitrile D seal Nitrile O-ring Nickel-plated brass threads
Markets:	Pneumatics Robotic Automation Semi-conductors Packaging Textile
Applications:	Air Inert Gases Cutting Fluids
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing
Temperature Range:	-4° to +175° F (-20° to +79.4° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer


Part Number	Tube Size	NPT	F	G	H	L
W369PLPO-4M-2	5/32"	1/8"	12 mm	.43"	.85"	.69"
W369PLPO-4-2	1/4"	1/8"	14 mm	.55"	1.04"	.81"
W369PLPO-4-4	1/4"	1/4"	14 mm	.55"	1.04"	.81"
