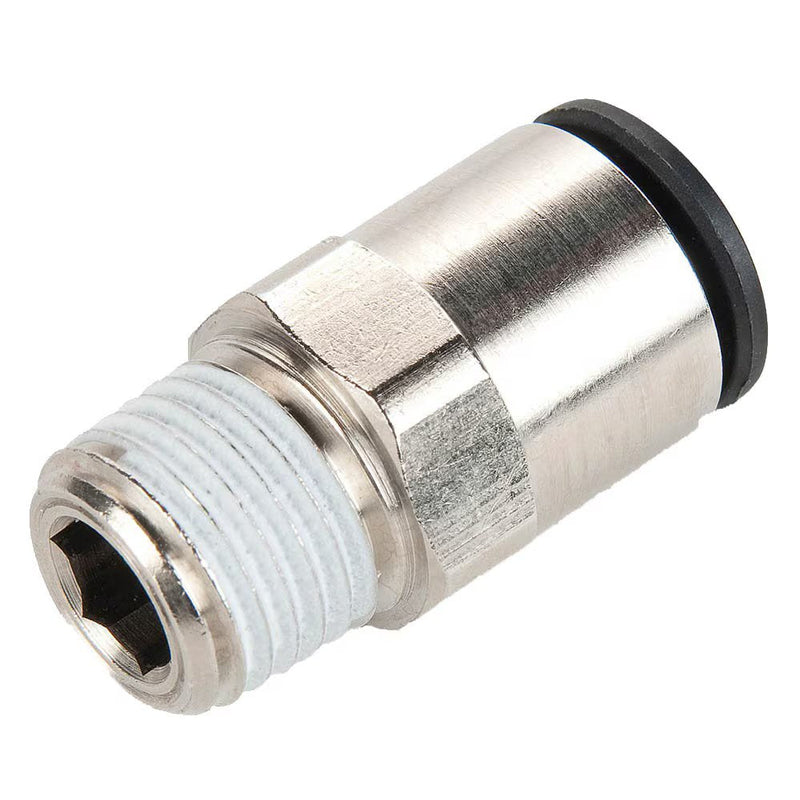

W68LF-10M-6 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Threaded Fittings | 10mm Connector x 3/8 Male NPT Thread | .77" Width | Straight | Brass | Pack of 10

Save $9.74

$107.10

$107.10 - $107.10

$107.10

$97.36

$97.36 - $97.36

$97.36

by Parker Hannifin
Push-to-Connect Fittings:W68LF Male Connector Metric to NPT

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: W68LF-10M-6 Parker \| 10 \|
Series:	W68LF Series
Shape (Orientation):	Straight
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	NPT (C)	F1	F2	H	K
W68LF-4M-2	4 mm	1/8"	11 mm	3 mm	.33"	.47"
W68LF-4M-4	4 mm	1/4"	14 mm	3 mm	.28"	.59"
W68LF-6M-2	6 mm	1/8"	11 mm	4 mm	.45"	.47"
W68LF-6M-4	6 mm	1/4"	14 mm	4 mm	.33"	.59"
W68LF-8M-2	8 mm	1/8"	13 mm	5 mm	.79"	.55"
W68LF-8M-4	8 mm	1/4"	14 mm	6 mm	.66"	.59"
W68LF-8M-6	8 mm	3/8"	18 mm	6 mm	.46"	.77"
W68LF-10M-4	10 mm	1/4"	16 mm	7 mm	.79"	.69"
W68LF-10M-6	10 mm	3/8"	18 mm	8 mm	.65"	.77"
W68LF-10M-8	10 mm	1/2"	22 mm	8 mm	.55"	.95"
W68LF-12M-6	12 mm	3/8"	19 mm	9 mm	.95"	.83"
W68LF-12M-8	12 mm	1/2"	22 mm	10 mm	.77"	.95"
