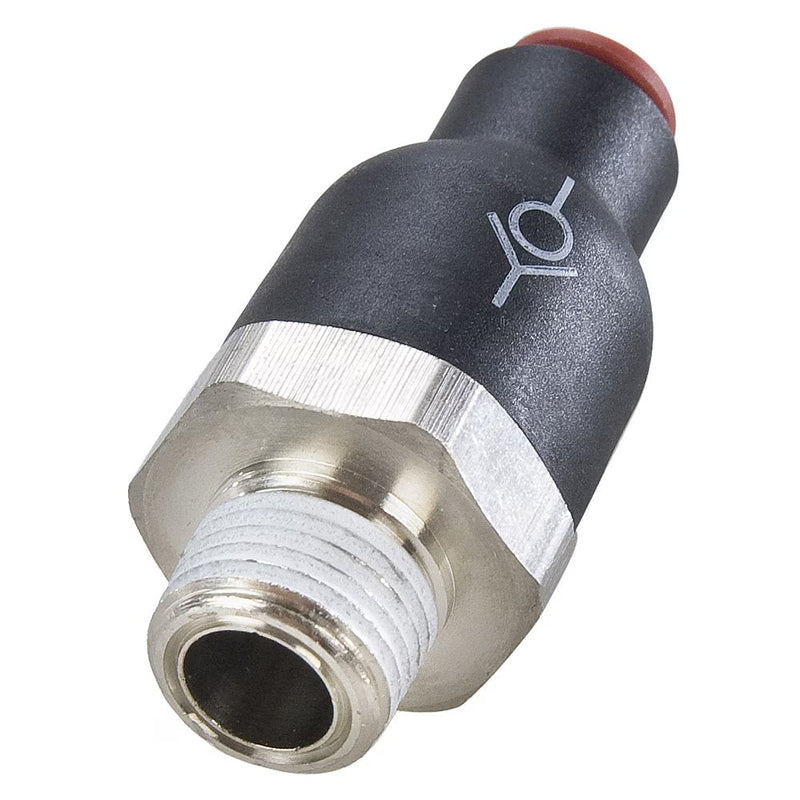

W68PLCK-6-6 by Parker | Check Valve | 3/8" Push-to-Connect x 3/8" Male NPT Thread | 23 mm Hex | Straight | Nylon/Nickel-Plated Brass | Pack of 5

W68PLCK-6-6 by Parker | Check Valve | 3/8" Push-to-Connect x 3/8" Male NPT Thread | 23 mm Hex | Straight | Nylon/Nickel-Plated Brass | Pack of 5

Save $125.69 Save $125.69
$314.22
$314.22 - $314.22
$314.22
$188.53
$188.53 - $188.53
$188.53

by Parker Hannifin
In-Line Check Valves:W68PLCK Male Check Valve

Package Quantity: 5 Units

Specifications for Variant SKU: W68PLCK-6-6 Parker | 5 |
Series: W68PLCK Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Nylon, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Petrochemical, Valved
Product Features:
  • Nylon/Nickel-plated brass body
  • VC – Acetal body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • Nitrile O-ring
  • EPDM O-ring (VC)
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Pneumatics
  • Semi-Conductor
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
  • Pneumatic Systems
  • Vacuum
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +34° to +150° F (+1.1° to 65.5° C)
Cracking Pressure: PLCK – 7 PSI (0.4 bar),
VC – 1/3 PSI (0.02 bar)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size NPT / UNF Hex H
W68PLCK-4M-2 5/32" 1/8" 16 mm 1.12"
W68PLCK-4-2 1/4" 1/8" 19 mm 1.42"
W68PLCK-4-4 1/4" 1/4" 19 mm 1.42"
W68PLCK-6-4 3/8" 1/4" 23 mm 1.65"
W68PLCK-6-6 3/8" 3/8" 23 mm 1.65"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
