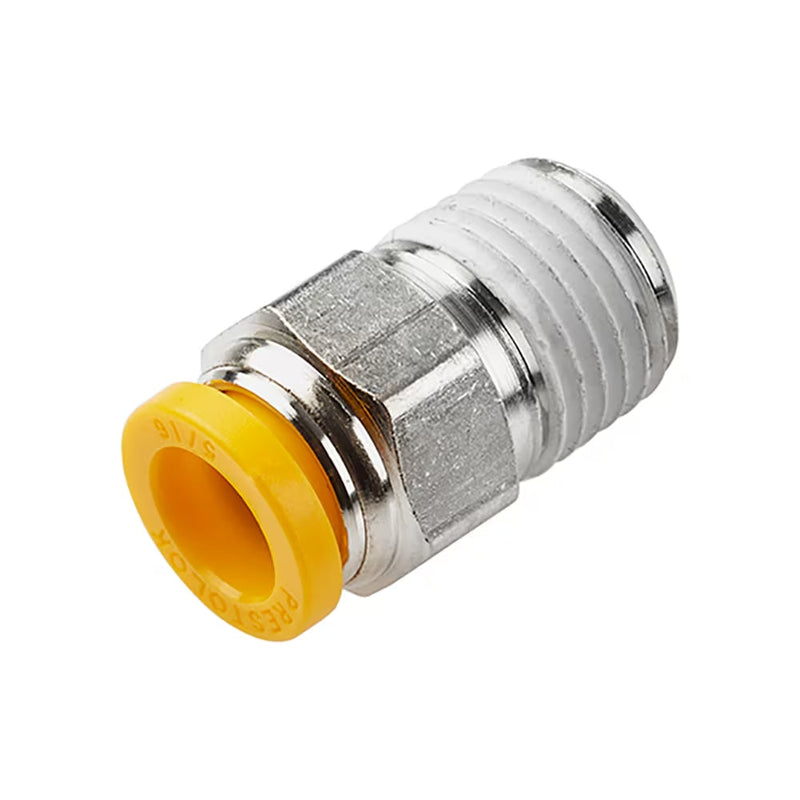

W68PLP-4M-4R by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 4mm Connector x 1/4" Male BSPT Thread | 9/16" Hex | 27.18mm Length | 3.175mm Flow Dia. | Straight | Nickel-Plated Brass

W68PLP-4M-4R by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 4mm Connector x 1/4" Male BSPT Thread | 9/16" Hex | 27.18mm Length | 3.175mm Flow Dia. | Straight | Nickel-Plated Brass

Save $0.43 Save $0.43
$4.76
$4.76 - $4.76
$4.76
$4.33
$4.33 - $4.33
$4.33

by Parker Hannifin
Push-to-Connect Fittings:W68PLP Male Connector – BSPT
Specifications for Variant SKU: W68PLP-4M-4R Parker
Series: W68PLP Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size Thread BSPT Hex (C) Length (L) Flow Diameter (D)
W68PLP-4M-2R 4 mm 1/8" 7/16" 20.41 mm 3.175 mm
W68PLP-4M-4R 4 mm 1/4" 9/16" 23.41 mm 3.175 mm
W68PLP-6M-2R 6 mm 1/8" 1/2" 22.00 mm 4.775 mm
W68PLP-6M-4R 6 mm 1/4" 9/16" 26.74 mm 4.775 mm
W68PLP-6M-6R 6 mm 3/8" 11/16" 26.46 mm 4.775 mm
W68PLP-8M-2R 8 mm 1/8" 9/16" 29.80 mm 6.350 mm
W68PLP-8M-4R 8 mm 1/4" 9/16" 26.24 mm 6.350 mm
W68PLP-8M-6R 8 mm 3/8" 11/16" 27.51 mm 6.350 mm
W68PLP-10M-4R 10 mm 1/4" 5/8" 29.72 mm 7.925 mm
W68PLP-10M-6R 10 mm 3/8" 11/16" 27.18 mm 7.925 mm
W68PLP-10M-8R 10 mm 1/2" 7/8" 34.24 mm 7.925 mm
W68PLP-12M-4R 12 mm 1/4" 13/16" 36.90 mm 8.738 mm
W68PLP-12M-6R 12 mm 3/8" 13/16" 30.85 mm 9.525 mm
W68PLP-12M-8R 12 mm 1/2" 7/8" 33.65 mm 9.525 mm
