WB1SS by Dixon Valve | King Cable® | Safety Cable | Hose-to-Hose Service | 1/2" - 1-1/4" Hose ID | 1/8" Cable Size | 20-1/4" Length | Stainless Steel

Save $3.81

$34.29

$34.29 - $34.29

$34.29

$30.48

$30.48 - $30.48

$30.48

Dixon Valve

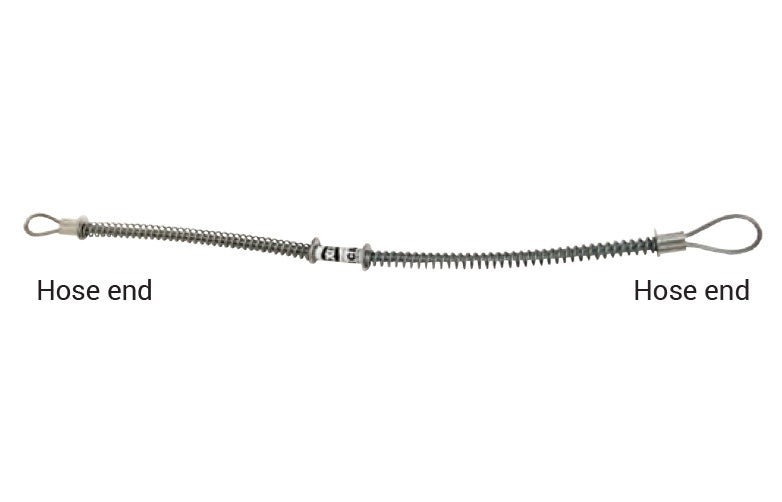

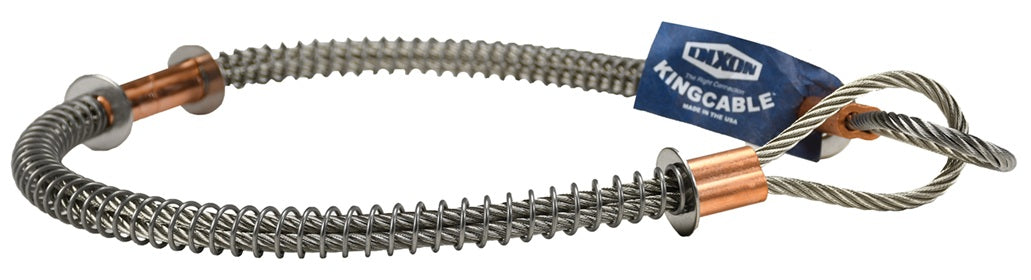

King Cable® | Safety Cable | Hose-to-Hose Service

When hose, couplings or clamps fail, or there is an accidental separation of the assembly, King safety cables minimize damage to equipment and injuries to operators.

Quantity

Specifications for Variant SKU: WB1SS Dixon
Brand:	King Cable
Series:	WB Series

Features:
King cable is the low cost answer to eliminate injuries caused by broken air hose connections. King safety cable reaches across the hose fittings to provide standby safety for hose. Spring-loaded loops in the cable ends open easily to pass over the couplings for a firm grip on the hose. Thoroughly tested with years of service. A positive safeguard for air hose connections - helps you meet today's safety standards. Highly resistant to rust and corrosion.
Installation:

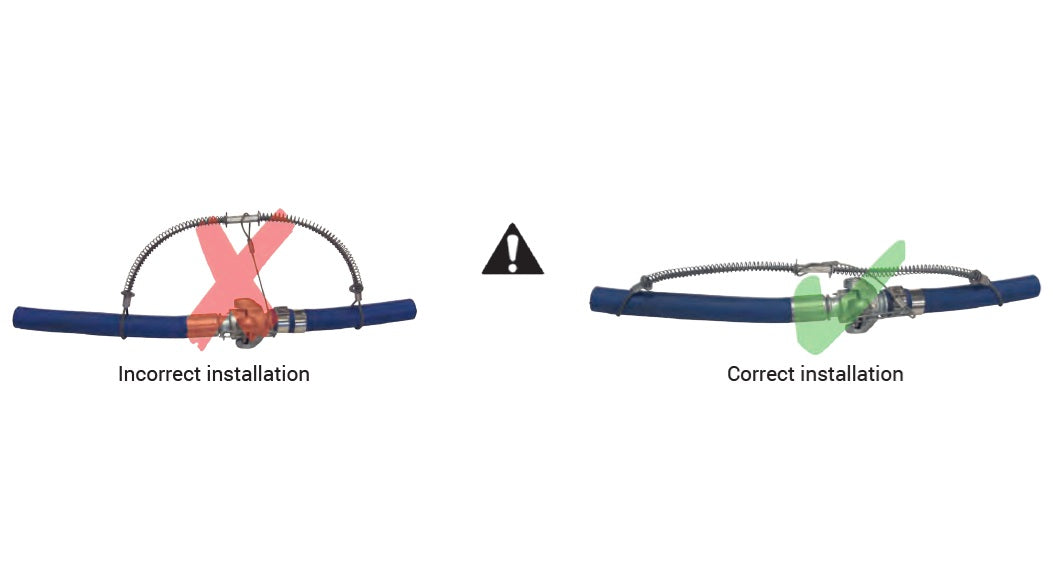

Must be installed in the extended position (no slack). No tools needed - easy to install and remove. Cables are shipped with safety restraint labels attached.
Safety Notes:
King Safety cable must be installed in the extended position (no slack). The Canada Occupational Safety and Health regulations Part XIII, 13:6b states: "Where an air hose is connected to a portable air powered tool used by an employee, a restraining device shall be attached to all hose connections, in order to prevent injury to an employee in the even of an accidental disconnection of a hose."

Part Number	Material	Hose I.D.	Cable	Length	Maximum Working Pressure	Construction
Part Number	Material	Hose I.D.	Cable	Length	Maximum Working Pressure	Wire Rope	Ferrules	Springs
WB1	Steel	1/2" - 1-1/4"	1/8"	20-1/4"	200 PSI	Galvanized Carbon Steel	Aluminum	Galvanized Carbon Steel
WB3	Steel	1/2" - 2"	3/16"	28"	200 PSI	Galvanized Carbon Steel	Aluminum	Galvanized Carbon Steel
WA2	Steel	1-1/2" - 3"	1/4"	38"	200 PSI	Galvanized Carbon Steel	Aluminum	Galvanized Carbon Steel
WA4	Steel	4"	3/8"	44"	200 PSI	Galvanized Carbon Steel	Aluminum	Galvanized Carbon Steel

WB1SS	Stainless Steel	1/2" - 1-1/4"	1/8"	20-1/4"	200 PSI	304 Stainless Steel	Copper	304 Stainless Steel
WB3SS	Stainless Steel	1/2" - 2"	3/16"	28"	200 PSI	304 Stainless Steel	Copper	304 Stainless Steel
WA2SS	Stainless Steel	1-1/2" - 3"	1/4"	38"	200 PSI	304 Stainless Steel	Copper	304 Stainless Steel
WA4SS	Stainless Steel	4"	3/8"	44"	200 PSI	304 Stainless Steel	Copper	304 Stainless Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
