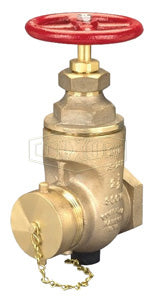

WDGV250NYFD Dixon Cast Brass Non-Rising Stem Wedge Disc Gate Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NYFD Outlet

Name: WDGV250NYFD Dixon Cast Brass Non-Rising Stem Wedge Disc Gate Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NYFD Outlet
Brand: Dixon
SKU: WDGV250NYFD Dixon
Price: 708.24 USD
Availability: InStock

Save $63.86

$772.10

$772.10 - $772.10

$772.10

$708.24

$708.24 - $708.24

$708.24

Dixon Fire Fittings
Non-Rising Stem Wedge Disc Gate Valve - Cast Brass

Quantity

Specifications for Variant SKU: WDGV250NYFD Dixon
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in Female NPT, 2-1/2in Male NYFD
Material(s):	Brass

Features:
Red iron handwheel, with brass cap and chain. Cap not included on the NYFD threaded valve. Solid wedge disc with tapered seats. 2-1/2" UL listed and FM approved. FM approved. Working pressure: 300 PSI at 70°F (21°C).


Size	A	B	C	D
1-1/2"	3-49/64"	5-5/8"	1-1/8"	6-3/8"
2-1/2"	6"	10-3/4"	2-1/2"	13-1/4"

Part Number	Female Inlet	Male Outlet	U/L	Weight (Lbs.)
WDGV150F	1-1/2" Female NPT	1-1/2" Male NST (NH)	No	3.3600
WDGV250F	2-1/2" Female NPT	2-1/2" Male NST (NH)	Yes	19.3200
WDGV250NYFD	2-1/2" Female NPT	2-1/2" Male NYFD	Yes	18.9750

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
