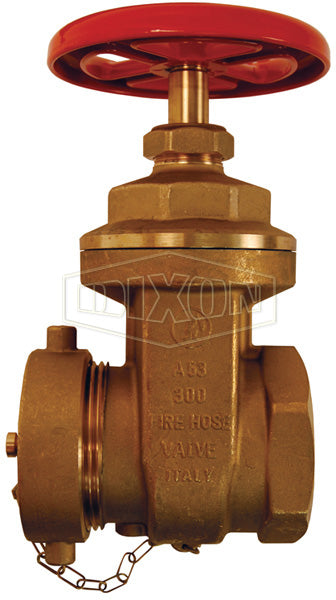

WDGV251F Dixon Forged Brass Non-Rising Stem Wedge Disc Gate Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NST(NH) Outlet

WDGV251F Dixon Forged Brass Non-Rising Stem Wedge Disc Gate Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NST(NH) Outlet

Save $31.50 Save $31.50
$384.16
$384.16 - $384.16
$384.16
$352.66
$352.66 - $352.66
$352.66

Dixon Fire Fittings
Non-Rising Stem Wedge Disc Gate Valves - Forged Brass

For use on standpipes, fire pumps and hydrants.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: WDGV251F Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Male NST
Material(s): Brass
Features:
  • Satin finish.
  • Red handwheel.
  • Solid wedge disc with tapered seats.
  • Straightway pattern.
  • UL listed and FM approved.
  • Working pressure: 300 PSI at 70°F (21°C).
Part Number Female NPT Inlet Male NST
(NH) Outlet		 Weight
(Lbs.)
WDGV251F 2-1/2" 2-1/2" 8.8000
WDGV3025F 3" 2-1/2" 9.5000
