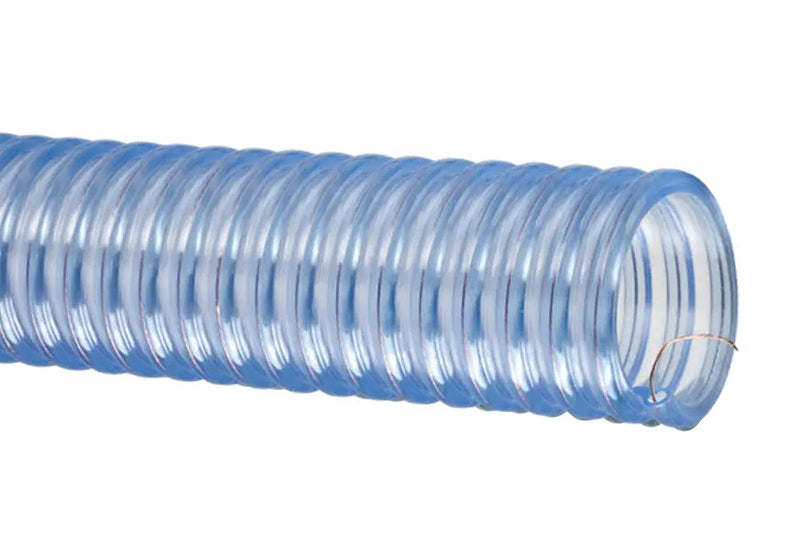

WE125X50 Tigerflex® by Kuriyama | WE™ Series | Food Grade Material Handling Hose | with Grounding Wire | PVC | 1-1/4" ID | 1.65" OD | 50ft Length

WE125X50 Tigerflex® by Kuriyama | WE™ Series | Food Grade Material Handling Hose | with Grounding Wire | PVC | 1-1/4" ID | 1.65" OD | 50ft Length

Save $62.05 Save $62.05
$353.35
$353.35 - $353.35
$353.35
$291.30
$291.30 - $291.30
$291.30
p>Kuriyama of America Inc.
Tigerflex® | WE™ Series | Food Grade Material Handling Hose with Grounding Wire | PVC

Ideal for standard-duty food-grade material handling, pharmaceutical product transfer, and for use with plastic processing and pneumatic conveying equipment.

Made in the USA.


Package Quantity: 50 Foot

Specifications for Variant SKU: WE125X50 Kuriyama | 50 |
Brand: Tigerflex
Series: WE Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1.25in
Outer Diameter: 1.65in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: BSE/TSE, FDA 21 CFR Part 170.199, RoHS Compliant, Applicable USDA Requirements
Special Properties: Ground Wire in Hose, Outer Helix Protection
Food Grade PVC Hose

Tigerflex™ WE™ Series

Food grade PVC material handling hose with a rigid PVC helix and embedded grounding wire. An industry standard for pneumatic material handling, combining light weight, flexibility and durability.

✓

Food Grade Materials

Complies with applicable FDA, 3-A and USDA requirements

⚡

Grounding Wire

Helps prevent static build-up for added safety

◎

See-the-Flow

Transparent construction for visual confirmation of flow

⚙

Convoluted Cover

Outer cover provides increased hose flexibility

1

What is this product used for?
  • Food grade material handling — standard duty
  • Pharmaceutical product transfer
  • Plastic processing equipment
  • Pneumatic conveying equipment
2

What are the key specifications?
Tube

PVC

Reinforcement

Rigid PVC helix and grounding wire

Cover

PVC

Service Temperature Range

-4°F (-20°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)

Specifications

BSE/TSE (02) · FDA (03) · Phthalate Free (10) · RoHS (11) · USDA (12)

3

What are the main product features?
  • Superior Product Design — Tigerflex™ WE™ series hoses are an industry standard for pneumatic material handling, due to our specially engineered compound, innovative design and uncompromising quality control. Provides the ideal combination of light weight, flexibility and durability.
  • Food Grade Materials — Hose complies with applicable FDA (03), 3-A (01) and USDA (12) requirements.
  • Grounding Wire — Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
  • Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover — Provides increased hose flexibility.
  • Made in the USA
4

Which sizes are available?
Part
Number		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Length
(ft)		 Weight
(lbs/ft)
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F
1" ID
WE100X50 1" 25.4mm 1.30" 33.0mm 55 PSI 30 PSI 28 in Hg 28 in Hg 2" 50ft 0.21 lbs
WE100X100 1" 25.4mm 1.30" 33.0mm 55 PSI 30 PSI 28 in Hg 28 in Hg 2" 100ft 0.21 lbs
1-1/4" ID
WE125X50 1-1/4" 32.0mm 1.65" 42.0mm 50 PSI 25 PSI 28 in Hg 28 in Hg 2" 50ft 0.33 lbs
WE125X60 1-1/4" 32.0mm 1.65" 42.0mm 50 PSI 25 PSI 28 in Hg 28 in Hg 2" 60ft 0.33 lbs
WE125X100 1-1/4" 32.0mm 1.65" 42.0mm 50 PSI 25 PSI 28 in Hg 28 in Hg 2" 100ft 0.33 lbs
1-1/2" ID
WE150X50 1-1/2" 38.1mm 1.93" 49.0mm 50 PSI 25 PSI 28 in Hg 28 in Hg 3" 50ft 0.43 lbs
WE150X60 1-1/2" 38.1mm 1.93" 49.0mm 50 PSI 25 PSI 28 in Hg 28 in Hg 3" 60ft 0.43 lbs
WE150X100 1-1/2" 38.1mm 1.93" 49.0mm 50 PSI 25 PSI 28 in Hg 28 in Hg 3" 100ft 0.43 lbs
WE150X200 1-1/2" 38.1mm 1.93" 49.0mm 50 PSI 25 PSI 28 in Hg 28 in Hg 3" 200ft 0.43 lbs
2" ID
WE200X50 2" 50.8mm 2.48" 63.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4" 50ft 0.58 lbs
WE200X60 2" 50.8mm 2.48" 63.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4" 60ft 0.58 lbs
WE200X100 2" 50.8mm 2.48" 63.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4" 100ft 0.58 lbs
WE200X200 2" 50.8mm 2.48" 63.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4" 200ft 0.58 lbs
2-1/4" ID
WE225X50 2-1/4" 57.2mm 2.80" 71.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 50ft 0.65 lbs
WE225X60 2-1/4" 57.2mm 2.80" 71.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 60ft 0.65 lbs
WE225X100 2-1/4" 57.2mm 2.80" 71.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 100ft 0.65 lbs
2-1/2" ID
WE250X50 2-1/2" 63.5mm 3.07" 76.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 5" 50ft 0.89 lbs
WE250X60 2-1/2" 63.5mm 3.07" 76.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 5" 60ft 0.89 lbs
WE250X100 2-1/2" 63.5mm 3.07" 76.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 5" 100ft 0.89 lbs
WE250X200 2-1/2" 63.5mm 3.07" 76.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 5" 200ft 0.89 lbs
3" ID
WE300X50 3" 76.2mm 3.64" 91.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 6" 50ft 1.25 lbs
WE300X60 3" 76.2mm 3.64" 91.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 6" 60ft 1.25 lbs
WE300X100 3" 76.2mm 3.64" 91.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 6" 100ft 1.25 lbs
WE300X200 3" 76.2mm 3.64" 91.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 6" 200ft 1.25 lbs
3-1/2" ID
WE350X50 3-1/2" 88.9mm 4.27" 108.5mm 35 PSI 18 PSI 28 in Hg 24 in Hg 8" 50ft 1.55 lbs
WE350X60 3-1/2" 88.9mm 4.27" 108.5mm 35 PSI 18 PSI 28 in Hg 24 in Hg 8" 60ft 1.55 lbs
WE350X100 3-1/2" 88.9mm 4.27" 108.5mm 35 PSI 18 PSI 28 in Hg 24 in Hg 8" 100ft 1.55 lbs
4" ID
WE400X50 4" 101.6mm 4.72" 120.0mm 35 PSI 18 PSI 24 in Hg 20 in Hg 10" 50ft 1.93 lbs
WE400X60 4" 101.6mm 4.72" 120.0mm 35 PSI 18 PSI 24 in Hg 20 in Hg 10" 60ft 1.93 lbs
WE400X100 4" 101.6mm 4.72" 120.0mm 35 PSI 18 PSI 24 in Hg 20 in Hg 10" 100ft 1.93 lbs
WE400X200 4" 101.6mm 4.72" 120.0mm 35 PSI 18 PSI 24 in Hg 20 in Hg 10" 200ft 1.93 lbs
5" ID
WE500X50 5" 127.0mm 5.74" 146.0mm 30 PSI 15 PSI 24 in Hg 20 in Hg 16" 50ft 2.40 lbs
WE500X60 5" 127.0mm 5.74" 146.0mm 30 PSI 15 PSI 24 in Hg 20 in Hg 16" 60ft 2.40 lbs
WE500X100 5" 127.0mm 5.74" 146.0mm 30 PSI 15 PSI 24 in Hg 20 in Hg 16" 100ft 2.40 lbs
6" ID
WE600X50 6" 152.4mm 6.81" 175.5mm 30 PSI 15 PSI 24 in Hg 20 in Hg 18" 50ft 3.70 lbs
WE600X60 6" 152.4mm 6.81" 175.5mm 30 PSI 15 PSI 24 in Hg 20 in Hg 18" 60ft 3.70 lbs
Metric Sizes
WE45MX50 1.77" 45.0mm 2.20" 55.8mm 45 PSI 25 PSI 28 in Hg 24 in Hg 4" 50ft 0.46 lbs
WE45MX60 1.77" 45.0mm 2.20" 55.8mm 45 PSI 25 PSI 28 in Hg 24 in Hg 4" 60ft 0.46 lbs
WE45MX100 1.77" 45.0mm 2.20" 55.8mm 45 PSI 25 PSI 28 in Hg 24 in Hg 4" 100ft 0.46 lbs
WE57MX60 2.24" 57.0mm 2.76" 70.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 60ft 0.64 lbs
WE60MX50 2.36" 60.0mm 2.80" 71.1mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 50ft 0.71 lbs
WE60MX100 2.36" 60.0mm 2.80" 71.1mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4-1/2" 100ft 0.71 lbs
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide PDF

Consult the Tigerflex Hose Specifications Guide for more information on BSE/TSE, FDA, Phthalate Free, RoHS and USDA compliance.

i
Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent.

How is this product sold?

Sold by the coil in 50 ft, 60 ft, 100 ft and 200 ft lengths, depending on hose size. See the size chart above for available part numbers.


⚠ CAUTION: Grounding wire is designed to help dissipate static charge when extracted and connected to ground. Hose is not to be used in combustible situations unless it has been determined by the end user the application is not sufficient to result in propagating brush discharge.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
