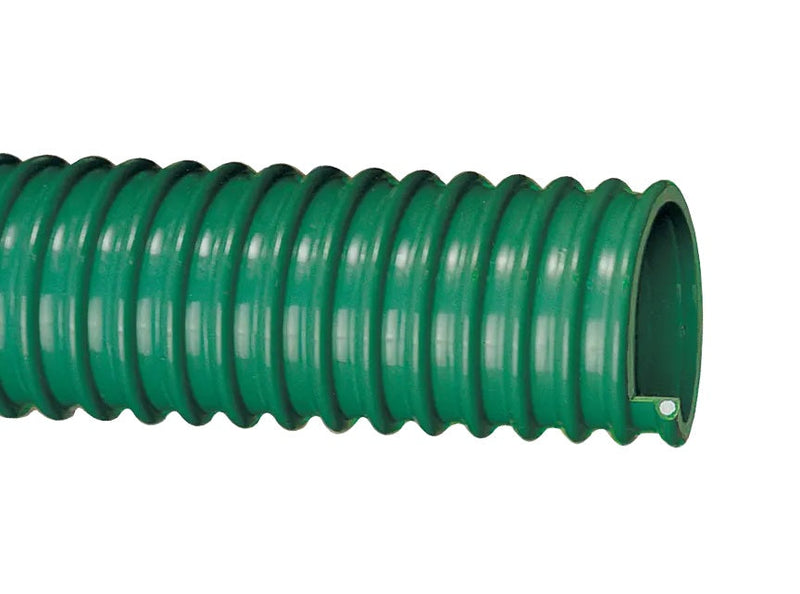

WG400X100 Tigerflex® by Kuriyama | WG™ Series | Heavy-Duty Liquid Suction Hose | PVC | 4" ID | 4.76" OD | 100ft Length

WG400X100 Tigerflex® by Kuriyama | WG™ Series | Heavy-Duty Liquid Suction Hose | PVC | 4" ID | 4.76" OD | 100ft Length

Save $575.20 Save $575.20
$1,852.60
$1,852.60 - $1,852.60
$1,852.60
$1,277.40
$1,277.40 - $1,277.40
$1,277.40
p>Kuriyama of America Inc.
Tigerflex® | WG™ Series | Heavy-Duty Liquid Suction Hose | PVC


Designed for demanding water transfer.

Ideal for fish suction, irrigation lines, dewatering and trash pumps, rock dusting, and heavy-duty water suction applications.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: WG400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: WG Series
Hose Color(s): Green
Internal Diameter: 4in
Outer Diameter: 4.76in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection
Applications: Fish suction.
Irrigation lines.
Pumps, rental and construction dewatering.
Pumps, trash.
Rock dusting.
Water suction - heavy duty.
Tube: PVC. Reinforcement: Rigid PVC helix.
Cover: - Service Temperature Range: -4ºF (-20ºC) to +150ºF (+65ºC)
(Actual service temperature range is application dependent)
Specifications: Phthalate Free (10)
RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Highly Durable PVC Tube - Formulated from highly durable PVC compound for increased abrasion and tear resistance.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
WG150X100 1-1/2" 38.1mm 1.85" 47.0mm 50 PSI 25 PSI Full 28 in Hg 2" 0.34 lbs
WG200X100 2" 50.8mm 2.40" 61.0mm 50 PSI 25 PSI Full 28 in Hg 3" 0.52 lbs
WG300X100 3" 76.2mm 3.64" 92.5mm 45 PSI 25 PSI Full 28 in Hg 6" 1.18 lbs
WG400X100 4" 101.6mm 4.76" 120.9mm 35 PSI 18 PSI Full 28 in Hg 8" 1.93 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
