WGC-CS40 Kuri-Clamp™ by Kuriyama | Standard Duty Worm Gear Hose Clamp | 2-1/16" to 3" Size Range | 1/2" Band Width | 300 Stainless Steel & Plated Carbon Steel
WGC-CS40 Kuri-Clamp™ by Kuriyama | Standard Duty Worm Gear Hose Clamp | 2-1/16" to 3" Size Range | 1/2" Band Width | 300 Stainless Steel & Plated Carbon Steel | Pack of 10
WGC-CS40 Kuri-Clamp™ by Kuriyama | Standard Duty Worm Gear Hose Clamp | 2-1/16" to 3" Size Range | 1/2" Band Width | 300 Stainless Steel & Plated Carbon Steel

WGC-CS40 Kuri-Clamp™ by Kuriyama | Standard Duty Worm Gear Hose Clamp | 2-1/16" to 3" Size Range | 1/2" Band Width | 300 Stainless Steel & Plated Carbon Steel | Pack of 10

Save $7.56 Save $7.56
$18.06
$18.06 - $18.06
$18.06
$10.50
$10.50 - $10.50
$10.50

Kuriyama of America Inc.

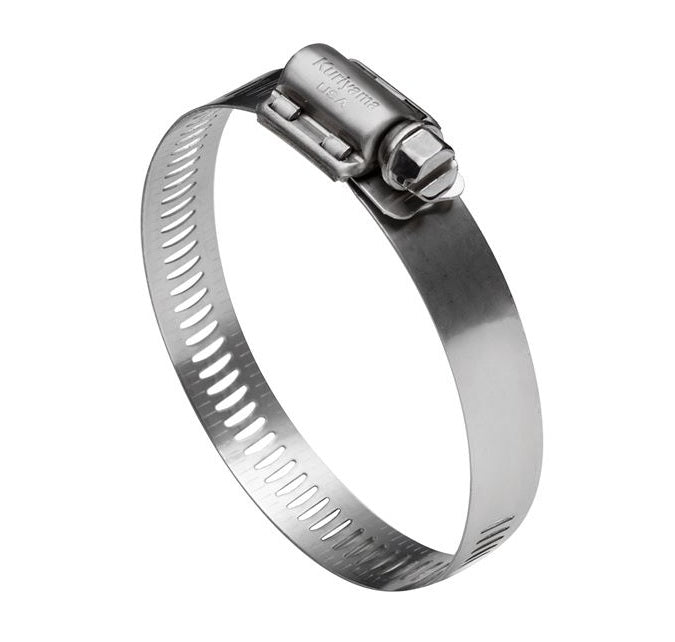

Kuri-Clamp™ | WGC-CS Series | Standard Duty Worm Gear Clamp

Stainless Steel Band & Housing, Carbon Steel Screw.

Ideal for automotive and industrial, and general purpose applications.

Made in the USA.


Package Quantity: 10 Units

Specifications for Variant SKU: WGC-CS40 Kuriyama | 10 |
Brand: Kuri-Clamp
Series: WGC-CS Series
Material(s): 300 Stainless Steel, Plated Carbon Steel
Clamp Width: 0.5in
Minimum Clamp I.D.: 2.0625in
Maximum Clamp I.D.: 3in

What are the Applications?

  • Automotive
  • Industrial
  • General purpose

How is it Constructed?

  • Four-piece construction.
  • 1/2" wide, 300 series stainless steel band.
  • Plated carbon steel hex screw with 5/16" head.
  • Two-piece, 300 series stainless steel housing.
Part Number Size Range
(in)		 Band
Width
(in)		 Torque
Rating
(in/lbs)
WGC-CS06 7/16" - 25/32" 1/2" 25-37 in/lbs
WGC-CS08 1/2" - 29/32" 1/2" 25-37 in/lbs
WGC-CS10 9/16" - 1-1/16" 1/2" 25-37 in/lbs
WGC-CS12 11/16" - 1-1/4" 1/2" 25-37 in/lbs
WGC-CS16 13/16" - 1-1/2" 1/2" 25-37 in/lbs
WGC-CS20 13/16" - 1-3/4" 1/2" 25-37 in/lbs
WGC-CS24 1-1/16" - 2" 1/2" 25-37 in/lbs
WGC-CS28 1-5/16" - 2-1/4" 1/2" 25-37 in/lbs
WGC-CS32 1-9/16" - 2-1/2" 1/2" 25-37 in/lbs
WGC-CS36 1-13/16" - 2-3/4" 1/2" 25-37 in/lbs
WGC-CS40 2-1/16" - 3" 1/2" 25-37 in/lbs
WGC-CS44 2-5/16" - 3-1/4" 1/2" 25-37 in/lbs
WGC-CS48 2-9/16" - 3-1/2" 1/2" 25-37 in/lbs
WGC-CS52 2-13/16" - 3-3/4" 1/2" 25-37 in/lbs
WGC-CS56 3-1/16" - 4" 1/2" 25-37 in/lbs
WGC-CS60 3-5/16" - 4-1/4" 1/2" 25-37 in/lbs
WGC-CS64 3-9/16" - 4-1/2" 1/2" 25-37 in/lbs
WGC-CS72 1-7/8" - 5" 1/2" 25-37 in/lbs
WGC-CS80 2-1/2" - 5-1/2" 1/2" 25-37 in/lbs
WGC-CS88 3-1/8" - 6" 1/2" 25-37 in/lbs
WGC-CS96 3-5/8" - 6-1/2" 1/2" 25-37 in/lbs
WGC-CS104 4-1/8" - 7" 1/2" 25-37 in/lbs
