WGC-CSHD80 Kuri-Clamp™ by Kuriyama | Heavy Duty Worm Gear Clamp | 2-1/2" to 5-1/2" Size Range | 9/16" Band Width | Stainless Steel Band & Housing | Carbon Steel Screw
WGC-CSHD80 Kuri-Clamp™ by Kuriyama | Heavy Duty Worm Gear Clamp | 2-1/2" to 5-1/2" Size Range | 9/16" Band Width | Stainless Steel Band & Housing | Carbon Steel Screw | Pack of 10
WGC-CSHD80 Kuri-Clamp™ by Kuriyama | Heavy Duty Worm Gear Clamp | 2-1/2" to 5-1/2" Size Range | 9/16" Band Width | Stainless Steel Band & Housing | Carbon Steel Screw

WGC-CSHD80 Kuri-Clamp™ by Kuriyama | Heavy Duty Worm Gear Clamp | 2-1/2" to 5-1/2" Size Range | 9/16" Band Width | Stainless Steel Band & Housing | Carbon Steel Screw | Pack of 10

Save $11.55 Save $11.55
$38.37
$38.37 - $38.37
$38.37
$26.82
$26.82 - $26.82
$26.82

Kuriyama

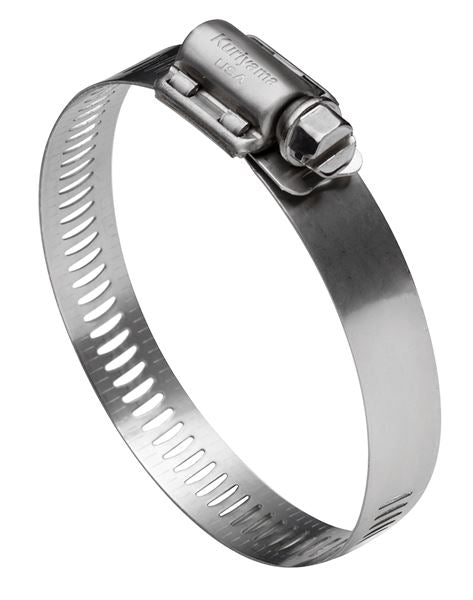

Kuri-Clamp™ | Heavy Duty Worm Gear Clamp

Stainless Steel Band & Housing, Carbon Steel Screw.

Ideal for automotive and industrial applications.

Package Quantity: 10 Units

Specifications for Variant SKU: WGC-CSHD80 Kuriyama | 10 |
Brand: Kuri-Clamp
Series: WGC-CSHD Series
Material(s): 300 Stainless Steel
Applicable Specs & Approvals: SAE J1508, RoHS Compliant
Clamp Width: 9/16
Minimum Clamp I.D.: 2-1/2
Maximum Clamp I.D.: 5-1/2
Features:

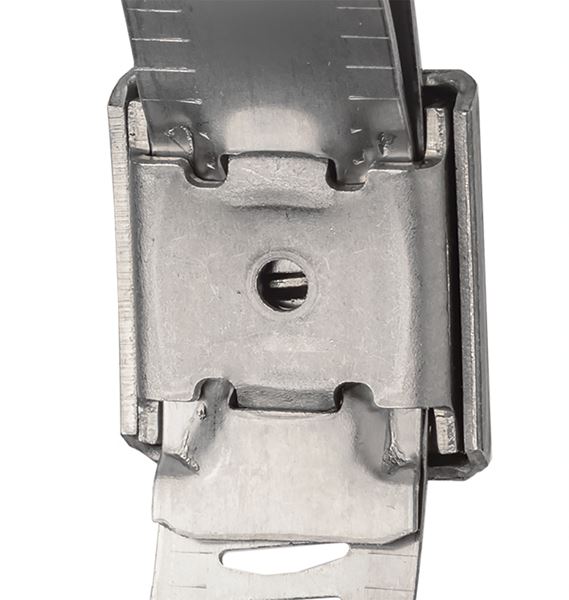

  • Quadra-Lock Housing - Four-piece, quadra-lock housing design: added saddle eliminates risk of seam separation, virtually eliminating housing "lift and twist".
  • Evenly Distributed Radial Pressure - Quality controlled to military standard specifications for even distribution of sealing pressure. Eliminates leakage caused by uneven housings and provides higher sealing pressure with lower applied torque.
  • Arched, Perforated Slots - Provides for more overall steel between perforations for added band strength and allows for smoother engagement.
  • Stainless Steel Band - 300 series stainless steel band provides durability and superior corrosion resistance.
  • Heavy Duty Stainless Steel Band (WGC-CSHD and WGC-SSHD only) - 300 Series stainless steel band provides durability and superior corrosion resistance. Wider than standard clamps for greater strength.
  • Hex Screw - Sharply defined hex angles for better gripping power. More threads per screw results in increased torque strength.
  • Meets Industry Standards - Clamps are SAE J1508 Type F and RoHS compliant.
  • Torque Rating - Suggested installation torque of: - 25-37 inch pounds (WGC-CSHD).
Construction:
  • Stainless Steel Band & Housing
  • Carbon Steel Screw
Part Number Size Range
(in)		 Band
Width
(in)		 Torque
Rating
(in/lbs)
WGC-CSHD06 7/16" - 25/32" 9/16" 25-37 in/lbs
WGC-CSHD08 1/2" - 29/32" 9/16" 25-37 in/lbs
WGC-CSHD10 9/16" - 1-1/16" 9/16" 25-37 in/lbs
WGC-CSHD12 11/16" - 1-1/4" 9/16" 25-37 in/lbs
WGC-CSHD16 13/16" - 1-1/2" 9/16" 25-37 in/lbs
WGC-CSHD20 13/16" - 1-3/4" 9/16" 25-37 in/lbs
WGC-CSHD24 1-1/16" - 2" 9/16" 25-37 in/lbs
WGC-CSHD28 1-5/16" - 2-1/4" 9/16" 25-37 in/lbs
WGC-CSHD32 1-9/16" - 2-1/2" 9/16" 25-37 in/lbs
WGC-CSHD36 1-13/16" - 2-3/4" 9/16" 25-37 in/lbs
WGC-CSHD40 2-1/16" - 3" 9/16" 25-37 in/lbs
WGC-CSHD44 2-5/16" - 3-1/4" 9/16" 25-37 in/lbs
WGC-CSHD48 2-9/16" - 3-1/2" 9/16" 25-37 in/lbs
WGC-CSHD52 2-13/16" - 3-3/4" 9/16" 25-37 in/lbs
WGC-CSHD56 3-1/16" - 4" 9/16" 25-37 in/lbs
WGC-CSHD60 3-5/16" - 4-1/4" 9/16" 25-37 in/lbs
WGC-CSHD64 3-9/16" - 4-1/2" 9/16" 25-37 in/lbs
WGC-CSHD72 1-7/8" - 5" 9/16" 25-37 in/lbs
WGC-CSHD80 2-1/2" - 5-1/2" 9/16" 25-37 in/lbs
WGC-CSHD88 3-1/8" - 6" 9/16" 25-37 in/lbs
WGC-CSHD96 3-5/8" - 6-1/2" 9/16" 25-37 in/lbs
WGC-CSHD104 4-1/8" - 7" 9/16" 25-37 in/lbs
WGC-CSHD128 5-5/8" - 8-1/2" 9/16" 25-37 in/lbs
WGC-CSHD152 7-1/8" - 10" 9/16" 25-37 in/lbs
WGC-CSHD188 9-3/8" - 12-1/4" 9/16" 25-37 in/lbs
