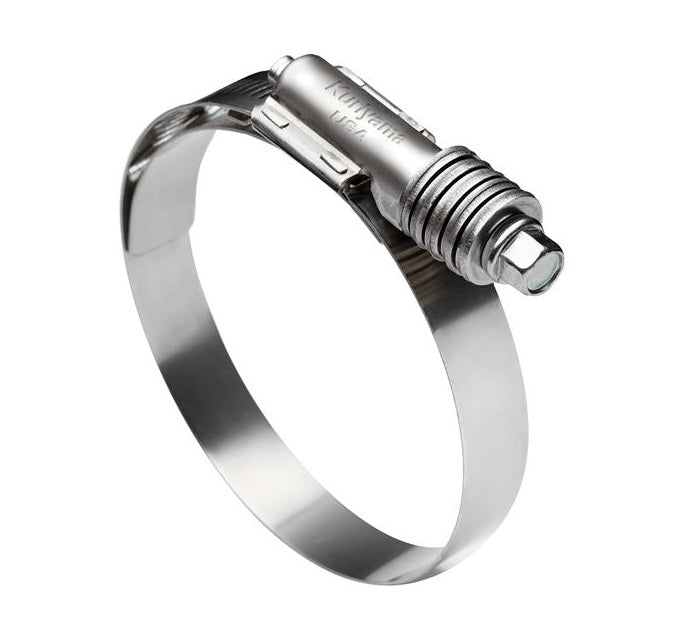

WGC-CT175 Kuri-Clamp™ by Kuriyama | Constant Tension Worm Gear Clamp | 1" to 1-3/4" Size Range | 9/16" Band Width | Stainless Steel & Plated Carbon Steel
WGC-CT175 Kuri-Clamp™ by Kuriyama | Constant Tension Worm Gear Clamp | 1" to 1-3/4" Size Range | 9/16" Band Width | Stainless Steel & Plated Carbon Steel | Pack of 10
WGC-CT175 Kuri-Clamp™ by Kuriyama | Constant Tension Worm Gear Clamp | 1" to 1-3/4" Size Range | 9/16" Band Width | Stainless Steel & Plated Carbon Steel

WGC-CT175 Kuri-Clamp™ by Kuriyama | Constant Tension Worm Gear Clamp | 1" to 1-3/4" Size Range | 9/16" Band Width | Stainless Steel & Plated Carbon Steel | Pack of 10

Save $19.12 Save $19.12
$123.58
$123.58 - $123.58
$123.58
$104.46
$104.46 - $104.46
$104.46

Kuriyama of America Inc.
Kuri-Clamp™ | WGC-CT Series | Constant Tension Worm Gear Clamp

Stainless Steel Band, Housing, and Plated Carbon Steel Hex Screw.

Ideal for systems where clamps cannot be retightened, and systems with expansion or contraction.


Package Quantity: 10 Units

Specifications for Variant SKU: WGC-CT175 Kuriyama | 10 |
Brand: Kuri-Clamp
Series: WGC-CT Series
Material(s): 300 Stainless Steel, Plated Carbon Steel
Clamp Width: 0.5625in
Minimum Clamp I.D.: 1in
Maximum Clamp I.D.: 1.75in

What are the Applications?

  • Air intake and coolant connections.
  • Systems where clamps cannot be retightened.
  • Systems with expansion or contraction.

What are the Features?

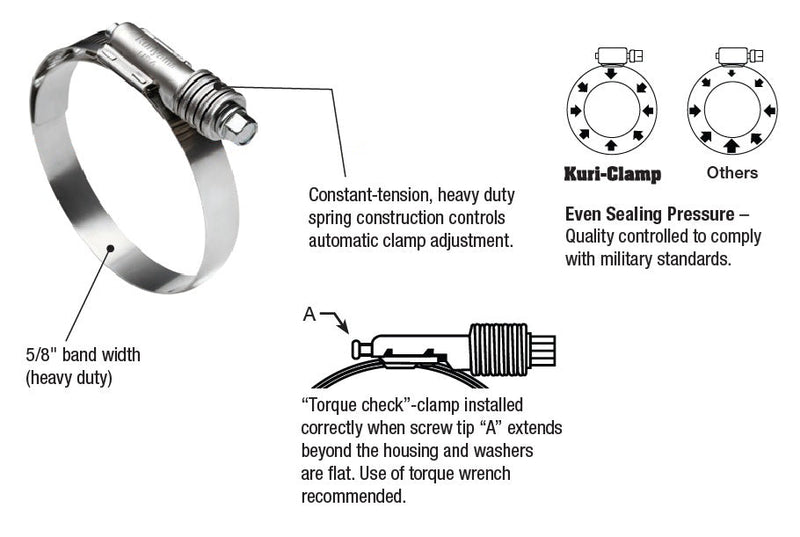

  • "Constant Tension" Performance - Belleville spring mechanism permits the clamps to automatically increase or decrease diameter due to operational or environmental temperature changes.
  • Extended Inner Liner - Protects silicone and other soft hoses from damage, extrusion or shear.
  • Quadra-Lock Housing - Four-piece, quadra-lock housing design: added saddle eliminates risk of seam separation, virtually eliminating housing "lift and twist".
  • Evenly Distributed Radial Pressure - Quality controlled to military standard specifications for even distribution of sealing pressure. Eliminates leakage caused by uneven housings and provides higher sealing pressure with lower applied torque.
  • Heavy Duty Stainless Steel Band - 300 Series stainless steel band provides durability and superior corrosion resistance. Wider than standard clamps for greater strength.
  • Arched, Perforated Slots - Provides for more overall steel between perforations for added band strength and allows for smoother engagement.
  • Hex Screw - Sharply defined hex angles for better gripping power. More threads per screw for increased torque strength.
  • Meets Industry Standards - Clamps are SAE J1508 Type SLDH and RoHS compliant.
  • Torque Rating - Suggested installation torque of 90 inch pounds.

How is it Constructed?

  • 5/8" wide, 300 series stainless steel band.
  • Plated carbon steel hex screw with 3/8" head.
  • Two-piece, 300 series stainless steel housing.
  • Ten Bellville spring washers.
Part Number Size Range
(in)		 Band
Width
(in)		 Torque
Rating
(in/lbs)
WGC-CT175 1" - 1-3/4" 9/16" 90 in/lbs
WGC-CT200 1-1/4" - 2-1/8" 9/16" 90 in/lbs
WGC-CT250 1-3/4" - 2-5/8" 9/16" 90 in/lbs
WGC-CT300 2" - 3-1/8" 9/16" 90 in/lbs
WGC-CT350 2-3/4" - 3-5/8" 9/16" 90 in/lbs
WGC-CT400 3-1/4" - 4-1/8" 9/16" 90 in/lbs
WGC-CT450 3-3/4" - 4-5/8" 9/16" 90 in/lbs
WGC-CT500 4-1/4" - 5-1/8" 9/16" 90 in/lbs
WGC-CT550 4-3/4" - 5-5/8" 9/16" 90 in/lbs
WGC-CT600 5-1/4" - 6-1/8" 9/16" 90 in/lbs
WGC-CT650 5-3/4" - 6-5/8" 9/16" 90 in/lbs
WGC-CT700 6-1/4" - 7-1/8" 9/16" 90 in/lbs
WGC-CT750 6-3/4" - 7-5/8" 9/16" 90 in/lbs
WGC-CT800 7-1/4" - 8-1/8" 9/16" 90 in/lbs
WGC-CT850 7-3/4" - 8-5/8" 9/16" 90 in/lbs
WGC-CT900 8-1/4" - 9-1/8" 9/16" 90 in/lbs
