WGC-MCS06 Kuri-Clamp™ by Kuriyama | Mini Worm Gear Hose Clamp | 7/16" to 25/32" Size Range | 5/16" Band Width | Stainless Steel & Plated Carbon Steel | Pack of 10

Save $5.58

$11.58

$11.58 - $11.58

$11.58

$6.00

$6.00 - $6.00

$6.00

Kuriyama of America Inc.

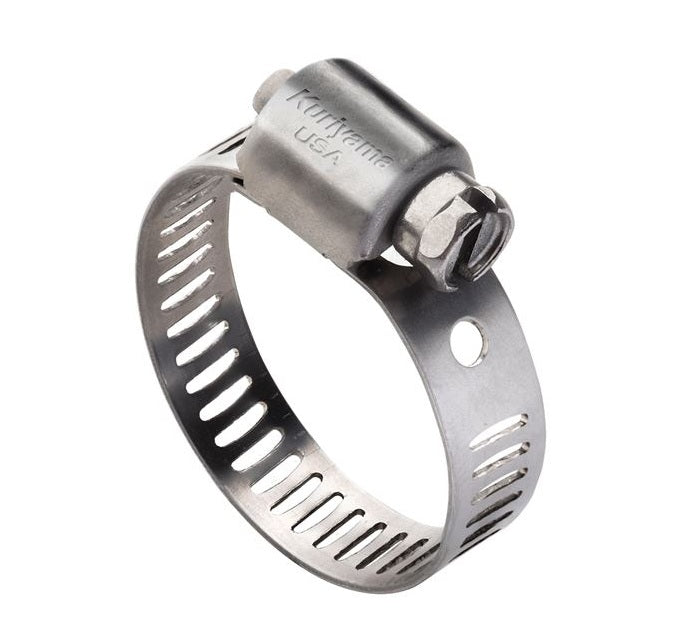

Kuri-Clamp™ | WGC-MCS Series | Mini Worm Gear Clamp

Stainless Steel Band & Housing. Plated carbon steel hex screw.

Ideal for Small diameter applications such as air & fuel lines.

Made in the USA.

Package Quantity: 10 Units

Specifications for Variant SKU: WGC-MCS06 Kuriyama \| 10 \|
Brand:	Kuri-Clamp
Series:	WGC-MCS Series
Material(s):	300 Stainless Steel, Plated Carbon Steel
Special Properties:	Mini/Micro Size
Clamp Width:	0.3125in
Minimum Clamp I.D.:	0.4375in
Maximum Clamp I.D.:	0.78125in

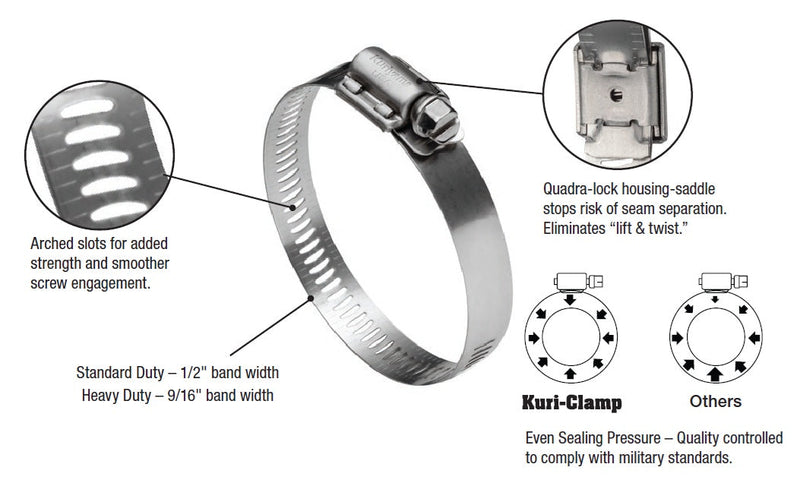

Three-piece Design - Streamlined, lightweight, three-piece design perfect for tight installations.
Arched, Perforated Slots - Provides for more overall steel between perforations for added band strength and allows for smoother engagement.
Stainless Steel Band - 300 series stainless steel band provides durability and superior corrosion resistance.
Hex Screw - Sharply defined hex angles for better gripping power. More threads per screw results in increased torque strength.
Meets Industry Standards - Clamps are SAE J1508 Type M and RoHS compliant.
Torque Rating - Suggested installation torque of 10-15 inch pounds.

Part Number	Size Range (in)	Band Width (in)	Torque Rating (in/lbs)
WGC-MCS04	7/32" - 5/8"	5/16"	10-15
WGC-MCS06	7/16" - 25/32"	5/16"	10-15
WGC-MCS08	1/2" - 29/32"	5/16"	10-15
WGC-MCS10	9/16" - 1-1/16"	5/16"	10-15
WGC-MCS12	11/16" - 1-1/4"	5/16"	10-15
