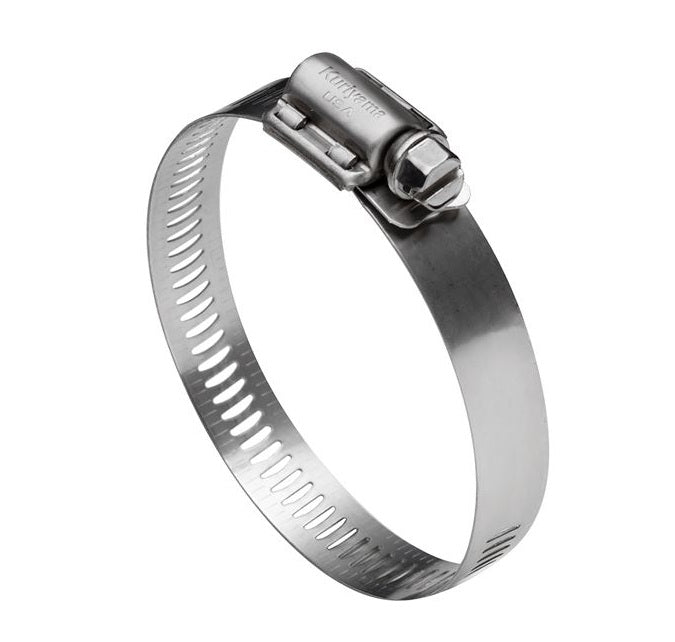

WGC-SS96 Kuri-Clamp™ by Kuriyama | Standard Duty Worm Gear Hose Clamp | 3-5/8" to 6 1/2" Size Range | 1/2" Band Width | 300 Stainless Steel
WGC-SS96 Kuri-Clamp™ by Kuriyama | Standard Duty Worm Gear Hose Clamp | 3-5/8" to 6 1/2" Size Range | 1/2" Band Width | 300 Stainless Steel | Pack of 10
WGC-SS96 Kuri-Clamp™ by Kuriyama | Standard Duty Worm Gear Hose Clamp | 3-5/8" to 6 1/2" Size Range | 1/2" Band Width | 300 Stainless Steel

WGC-SS96 Kuri-Clamp™ by Kuriyama | Standard Duty Worm Gear Hose Clamp | 3-5/8" to 6 1/2" Size Range | 1/2" Band Width | 300 Stainless Steel | Pack of 10

Save $10.58 Save $10.58
$31.10
$31.10 - $31.10
$31.10
$20.52
$20.52 - $20.52
$20.52

Kuriyama of America Inc.
Kuri-Clamp™ | WGC-SS Series | Standard Duty Worm Gear Clamp

Stainless Steel Band & Housing, and Screw.

Ideal for automotive and industrial, and general purpose applications.

Made in the USA.


Package Quantity: 10 Units

Specifications for Variant SKU: WGC-SS96 Kuriyama | 10 |
Brand: Kuri-Clamp
Series: WGC-SS Series
Material(s): 300 Stainless Steel
Clamp Width: 0.5in
Minimum Clamp I.D.: 3.625in
Maximum Clamp I.D.: 6.5in

What are the Applications?

  • Automotive
  • Industrial
  • General purpose

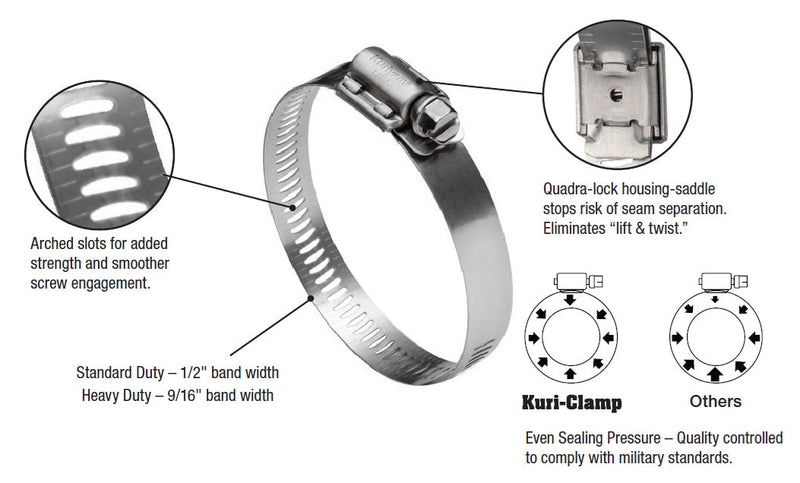

How is it Constructed?

  • Four-piece construction.
  • 1/2" wide, 300 series stainless steel band.
  • Stainless steel hex screw with 5/16" head.
  • Two-piece, 300 series stainless steel housing.
Part Number Size Range
(in)		 Band
Width
(in)		 Torque
Rating
(in/lbs)
WGC-SS06 7/16 - 25/32" 1/2" 30-45 in/lbs
WGC-SS08 1/2 - 29/32" 1/2" 30-45 in/lbs
WGC-SS10 9/16 - 1-1/16" 1/2" 30-45 in/lbs
WGC-SS12 11/16 - 1-1/4" 1/2" 30-45 in/lbs
WGC-SS16 13/16 - 1-1/2" 1/2" 30-45 in/lbs
WGC-SS20 13/16 - 1-3/4" 1/2" 30-45 in/lbs
WGC-SS24 1-1/16 - 2" 1/2" 30-45 in/lbs
WGC-SS28 1-5/16 - 2-1/4" 1/2" 30-45 in/lbs
WGC-SS32 1-9/16 - 2-1/2" 1/2" 30-45 in/lbs
WGC-SS36 1-13/16 - 2-3/4" 1/2" 30-45 in/lbs
WGC-SS40 2-1/16 - 3" 1/2" 30-45 in/lbs
WGC-SS44 2-5/16 - 3-1/4" 1/2" 30-45 in/lbs
WGC-SS48 2-9/16 - 3-1/2" 1/2" 30-45 in/lbs
WGC-SS52 2-13/16 - 3-3/4" 1/2" 30-45 in/lbs
WGC-SS56 3-1/16 - 4" 1/2" 30-45 in/lbs
WGC-SS60 3-5/16 - 4-1/4" 1/2" 30-45 in/lbs
WGC-SS64 3-9/16 - 4-1/2" 1/2" 30-45 in/lbs
WGC-SS72 1-7/8 - 5" 1/2" 30-45 in/lbs
WGC-SS80 2-1/2 - 5-1/2" 1/2" 30-45 in/lbs
WGC-SS88 3-1/8 - 6" 1/2" 30-45 in/lbs
WGC-SS96 3-5/8 - 6-1/2" 1/2" 30-45 in/lbs
WGC-SS104 4-1/8 - 7" 1/2" 30-45 in/lbs
