WGC-SSHD88 Kuri-Clamp™ by Kuriyama | Heavy Duty Worm Gear Clamp | 3-1/8" to 6" Size Range | 9/16" Band Width | Stainless Steel Band, Housing, & Screw
WGC-SSHD88 Kuri-Clamp™ by Kuriyama | Heavy Duty Worm Gear Clamp | 3-1/8" to 6" Size Range | 9/16" Band Width | Stainless Steel Band, Housing, & Screw | Pack of 10
WGC-SSHD88 Kuri-Clamp™ by Kuriyama | Heavy Duty Worm Gear Clamp | 3-1/8" to 6" Size Range | 9/16" Band Width | Stainless Steel Band, Housing, & Screw

WGC-SSHD88 Kuri-Clamp™ by Kuriyama | Heavy Duty Worm Gear Clamp | 3-1/8" to 6" Size Range | 9/16" Band Width | Stainless Steel Band, Housing, & Screw | Pack of 10

Save $12.95 Save $12.95
$51.89
$51.89 - $51.89
$51.89
$38.94
$38.94 - $38.94
$38.94

Kuriyama

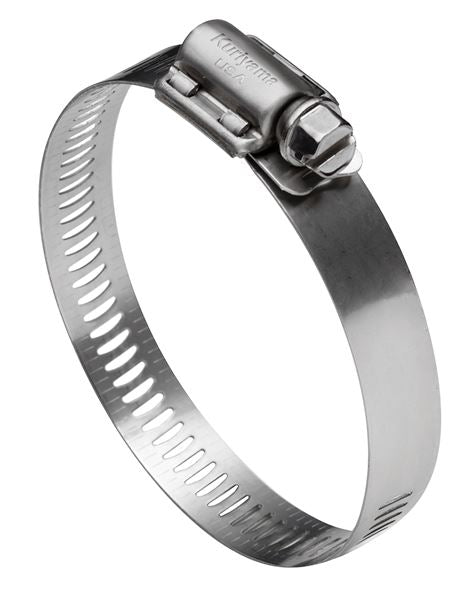

Kuri-Clamp™ | Heavy Duty Worm Gear Clamp

Stainless Steel Band, Housing, & Screw.

Ideal for automotive and industrial applications.

Package Quantity: 10 Units

Specifications for Variant SKU: WGC-SSHD88 Kuriyama | 10 |
Brand: Kuri-Clamp
Series: WGC-SSHD Series
Material(s): 300 Stainless Steel
Applicable Specs & Approvals: SAE J1508, RoHS Compliant
Clamp Width: 9/16
Minimum Clamp I.D.: 3-1/8
Maximum Clamp I.D.: 6
Features:

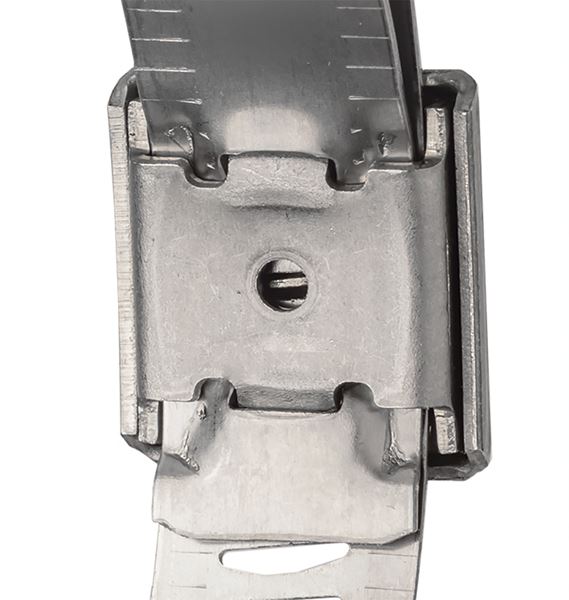

  • Quadra-Lock Housing - Four-piece, quadra-lock housing design: added saddle eliminates risk of seam separation, virtually eliminating housing "lift and twist".
  • Evenly Distributed Radial Pressure - Quality controlled to military standard specifications for even distribution of sealing pressure. Eliminates leakage caused by uneven housings and provides higher sealing pressure with lower applied torque.
  • Arched, Perforated Slots - Provides for more overall steel between perforations for added band strength and allows for smoother engagement.
  • Stainless Steel Band - 300 series stainless steel band provides durability and superior corrosion resistance.
  • Heavy Duty Stainless Steel Band (WGC-CSHD and WGC-SSHD only) - 300 Series stainless steel band provides durability and superior corrosion resistance. Wider than standard clamps for greater strength.
  • Hex Screw - Sharply defined hex angles for better gripping power. More threads per screw results in increased torque strength.
  • Meets Industry Standards - Clamps are SAE J1508 Type F and RoHS compliant.
  • Torque Rating - Suggested installation torque of: - 30-45 inch pounds (WGC-SSHD).
Construction:
  • Stainless Steel Band, Housing, & Screw.
Part Number Size Range
(in)		 Band
Width
(in)		 Torque
Rating
(in/lbs)
WGC-SSHD06 7/16" - 25/32" 9/16" 30-45 in/lbs.
WGC-SSHD08 1/2" - 29/32" 9/16" 30-45 in/lbs.
WGC-SSHD10 9/16" - 1-1/16" 9/16" 30-45 in/lbs.
WGC-SSHD12 11/16" - 1-1/4" 9/16" 30-45 in/lbs.
WGC-SSHD16 13/16" - 1-1/2" 9/16" 30-45 in/lbs.
WGC-SSHD20 13/16" - 1-3/4" 9/16" 30-45 in/lbs.
WGC-SSHD24 1-1/16" - 2" 9/16" 30-45 in/lbs.
WGC-SSHD28 1-5/16" - 2-1/4" 9/16" 30-45 in/lbs.
WGC-SSHD32 1-9/16" - 2-1/2" 9/16" 30-45 in/lbs.
WGC-SSHD36 1-13/16" - 2-3/4" 9/16" 30-45 in/lbs.
WGC-SSHD40 2-1/16" - 3" 9/16" 30-45 in/lbs.
WGC-SSHD44 2-5/16" - 3-1/4" 9/16" 30-45 in/lbs.
WGC-SSHD48 2-9/16" - 3-1/2" 9/16" 30-45 in/lbs.
WGC-SSHD52 2-13/16" - 3-3/4" 9/16" 30-45 in/lbs.
WGC-SSHD56 3-1/16" - 4" 9/16" 30-45 in/lbs.
WGC-SSHD60 3-5/16" - 4-1/4" 9/16" 30-45 in/lbs.
WGC-SSHD64 3-9/16" - 4-1/2" 9/16" 30-45 in/lbs.
WGC-SSHD72 1-7/8" - 5" 9/16" 30-45 in/lbs.
WGC-SSHD80 2-1/2" - 5-1/2" 9/16" 30-45 in/lbs.
WGC-SSHD88 3-1/8" - 6" 9/16" 30-45 in/lbs.
WGC-SSHD96 3-5/8" - 6-1/2" 9/16" 30-45 in/lbs.
WGC-SSHD104 4-1/8" - 7" 9/16" 30-45 in/lbs.
WGC-SSHD128 5-5/8" - 8-1/2" 9/16" 30-45 in/lbs.
WGC-SSHD152 7-1/8" - 10" 9/16" 30-45 in/lbs.
WGC-SSHD188 9-3/8" - 12-1/4" 9/16" 30-45 in/lbs.
