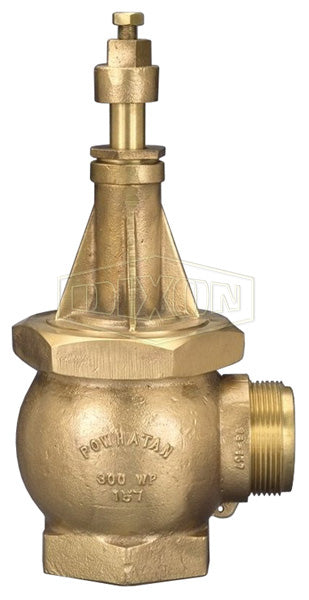

WHYD4045F Dixon Cast Brass Wharf Hydrant - 4" Female NPT Inlet x 4-1/2" Male NST(NH) Outlet

WHYD4045F Dixon Cast Brass Wharf Hydrant - 4" Female NPT Inlet x 4-1/2" Male NST(NH) Outlet

$1,163.89 - $1,163.89
$1,163.89
$1,461.99
$1,461.99 - $1,461.99
$1,461.99

Dixon Fire Fittings
Wharf Hydrants - Cast Brass

Used to provide a fire department outlet connection.
Specifications for Variant SKU: WHYD4045F Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 4in Female NPT, 4-1/2in Male NST
Material(s): Brass
Features:
  • Pentagon nut at top of spindle discourages unauthorized use.
  • Hydrostatically tested.
  • Maximum operating pressure: 300 PSI at 70°F (21°C).
Part Number Female NPT Inlet Male NST
(NH) Outlet		 Height Open Height Closed Weight
(Lbs.)
WHYD3025F 3" 2-1/2" 16.4" 14.25" 31.0000
WHYD4025F 4" 2-1/2" 16.4" 14.25" 23.0000
WHYD4045F 4" 4-1/2" 18.2" 15.6" 41.0000
Replacement Parts
46-030-00025 Handwheel 0.9400
44-251-00006 Pentagon Hex Nut 0.6000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
