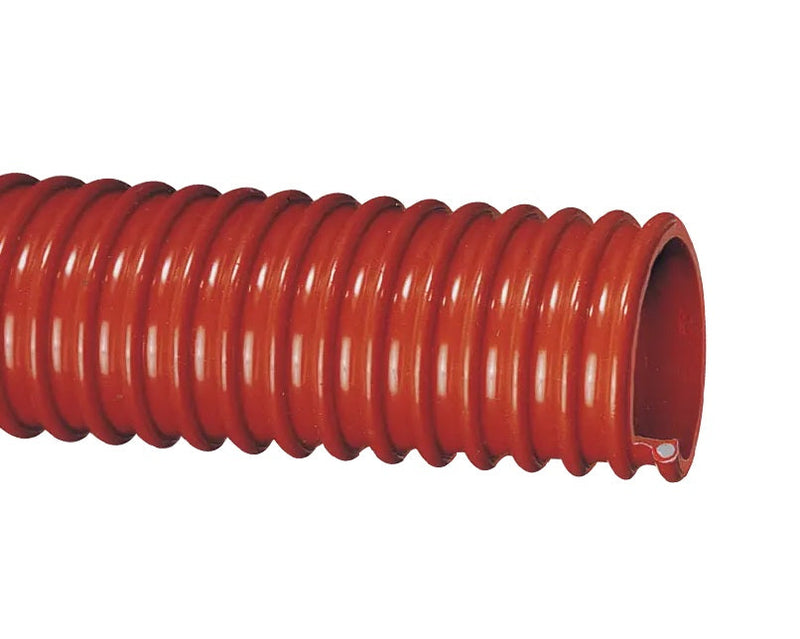

WOR400X100 Tigerflex® by Kuriyama | WOR™ Series | Standard-Duty Oil Resistant Suction Hose | PVC | 4" ID | 4.72" OD | 100ft Length

WOR400X100 Tigerflex® by Kuriyama | WOR™ Series | Standard-Duty Oil Resistant Suction Hose | PVC | 4" ID | 4.72" OD | 100ft Length

$0.00 - $0.00
$0.00
$1,492.80
$1,492.80 - $1,492.80
$1,492.80
p>Kuriyama of America Inc.
Tigerflex® | WOR™ Series | Standard-Duty Oil Resistant Suction Hose | PVC

Designed for environmental and industrial use.

Ideal for oil skimming, oil slurries, oil suction, and hydrocarbon vapor recovery applications.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: WOR400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: WOR Series
Hose Color(s): Red
Internal Diameter: 4in
Outer Diameter: 4.72in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection
Applications: Environmental clean-up.
Oil skimming.
Oil slurries.
Oil suction.
Vapor recovery - hydrocarbon emissions.
Tube: Oil resistant PVC. Reinforcement: Rigid PVC helix.
Cover: - Service Temperature Range: 5°F (-15°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Specifications: Phthalate Free (10)
RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Oil Resistant PVC - Made with special oil resistant compounds which exhibit medium resistance to oil and other hydrocarbons.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
WOR150X100 1-1/2" 38.1mm 1.92" 48.8mm 50 PSI 25 PSI 28 in Hg 24 in Hg 3" 0.31lbs
WOR200X100 2" 50.8mm 2.40" 61.0mm 40 PSI 20 PSI 28 in Hg 24 in Hg 4" 0.50lbs
WOR300X100 3" 76.2mm 3.64" 92.5mm 40 PSI 20 PSI 28 in Hg 24 in Hg 6" 1.17lbs
WOR400X100 4" 101.6mm 4.72" 119.9mm 35 PSI 18 PSI 28 in Hg 22 in Hg 10" 1.74lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
