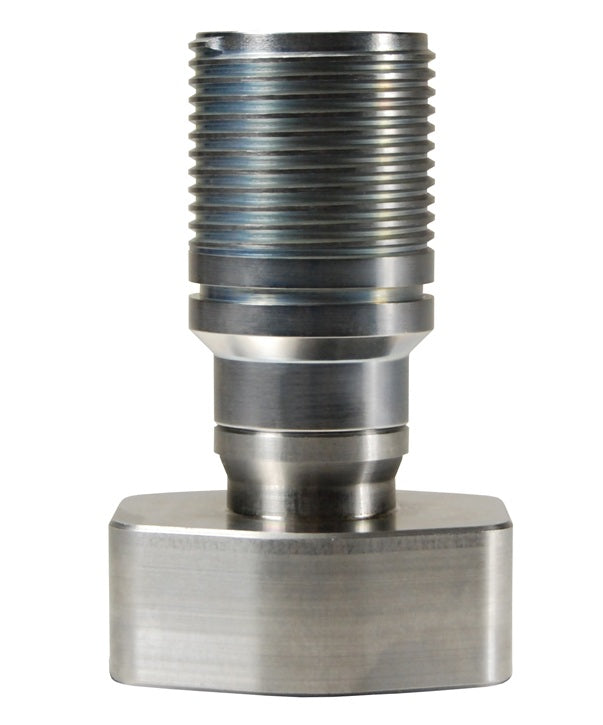

WS10FP10 by Dixon Valve | Hydraulic Quick Disconnect Coupling | WS-Series | 1-1/4" Code 62 Flange Pad x 1-1/4" Heavy-Duty Wingstyle | Plug | Steel

Save $141.61

$354.02

$354.02 - $354.02

$354.02

$212.41

$212.41 - $212.41

$212.41

Dixon Valve & Coupling
Hydraulic Coupling: WS-Series Heavy-Duty Wingstyle Code 62 Flange Pad Plug

Used extensively in oil field and off shore oil rig applications.

Specifications for Variant SKU: WS10FP10 Dixon
Series:	WS-Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male ISO-7241 Wing Nut QD Interchange, 1-1/4in Code 62 Flange
Material(s):	Steel

Compatibility & Interchange:	Snap-Tite 75-Series, Hydraulics Inc. Series- 5TV, DNP VFF-HD Stucchi VOF, Faster OGV, Danfoss / Aeroquip / Eaton FD85, Holmbury LC
Construction:	Machined components are manufactured using solid steel or 316 stainless steel bar stock. Stainless steel retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS compliant zinc nickel for corrosion resistance. Rugged high-strength steel sand-cast wing nut for threaded connect and disconnect operation. 316 stainless steel plug connection-threads are coated to prevent galling during connection/disconnection. Main valve seal is 'housed' to improve seal integrity during pressurized connection/disconnection.
Seal Components:	PTFE anti-extrusion ring protects main coupling O-ring from dynamic impulse pressure damage.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

WS-Series \| Heavy-Duty Wingstyle (Connected) Rated Pressure Chart
Body Size	Steel Coupler/Plug				316 Stainless Steel Coupler/Plug
Body Size	Max. Working		Burst		Max. Working		Burst
3/4"	5,000 PSI	345 Bar	32,800 PSI	2,200 Bar	3,000 PSI	200 Bar	20,000 PSI	1,400 Bar
1"	5,000 PSI	345 Bar	25,100 PSI	1,700 Bar	3,000 PSI	200 Bar	20,000 PSI	1,400 Bar
1-1/4"	5,000 PSI	345 Bar	25,100 PSI	1,700 Bar	3,000 PSI	200 Bar	15,000 PSI	1,000 Bar
1-1/2"	5,000 PSI	345 Bar	20,000 PSI	1,400 Bar	3,000 PSI	200 Bar	15,000 PSI	1,000 Bar
2"	5,000 PSI	345 Bar	15,000 PSI	1,000 Bar	3,000 PSI	200 Bar	15,000 PSI	1,000 Bar

WS-Series \| Heavy-Duty Wingstyle Code 62 Flange Pad Plug

Part Number	Coupling Type	Body Size	Port Size	Material	Length	Max. OD
WS6FP6	Plug/Male	3/4"	3/4" Code 62 Flange Pad	Steel	4.48" (113.79mm)	3.02" (76.71mm)
WS8FP8	Plug/Male	1"	1" Code 62 Flange Pad	Steel	6.34" (161.04mm)	3.44" (87.40mm)
WS10FP10	Plug/Male	1-1/4"	1-1/4" Code 62 Flange Pad	Steel	7.91" (201.02mm)	4.03" (102.41mm)
WS12FP12	Plug/Male	1-1/2"	1-1/2" Code 62 Flange Pad	Steel	9.25" (234.90mm)	4.76" (120.90mm)
WS16FP16	Plug/Male	2"	2" Code 62 Flange Pad	Steel	10.36" (263.12mm)	5.67" (144.12mm)

WS-Series \| Heavy-Duty Wingstyle Code 62 Flange Pad Coupler

Part Number	Coupling Type	Body Size	Port Size	Material	Length	Max. OD
6WSFP6	Socket/Female	3/4"	3/4" Code 62 Flange Pad	Steel	4.04" (102.62mm)	3.31" (84.07mm)
8WSFP8	Socket/Female	1"	1" Code 62 Flange Pad	Steel	5.48" (139.19mm)	4.10" (104.14mm)
10WSFP10	Socket/Female	1-1/4"	1-1/4" Code 62 Flange Pad	Steel	6.79" (172.47mm)	4.78" (121.41mm)
12WSFP12	Socket/Female	1-1/2"	1-1/2" Code 62 Flange Pad	Steel	8.40" (213.31mm)	5.68" (144.27mm)
16WSFP16	Socket/Female	2"	2" Code 62 Flange Pad	Steel	9.40" (238.73mm)	6.90" (175.26mm)
