Dixon Valve
King Cable® | Safety Cable | Hose-to-Tool Service

When hose, couplings or clamps fail, or there is an accidental separation of the assembly, King safety cables minimize damage to equipment and injuries to operators.
Specifications for Variant SKU: WSR3 Dixon
Brand: King Cable
Series: WSR Series
Features:
  • King cable is the low cost answer to eliminate injuries caused by broken air hose connections.

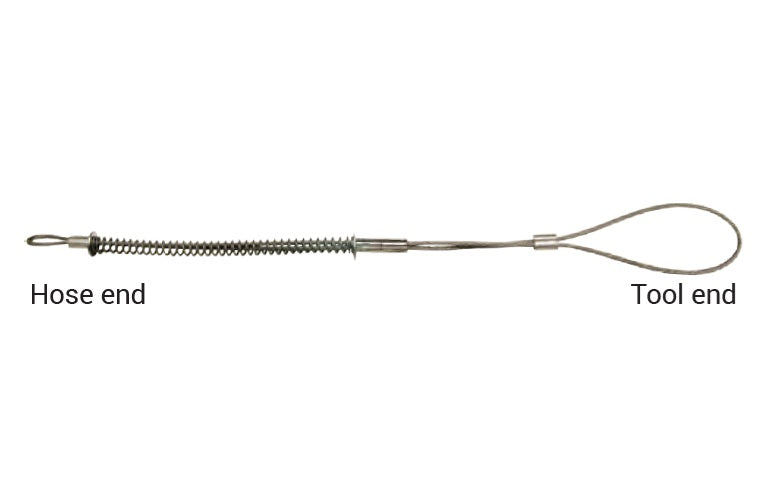

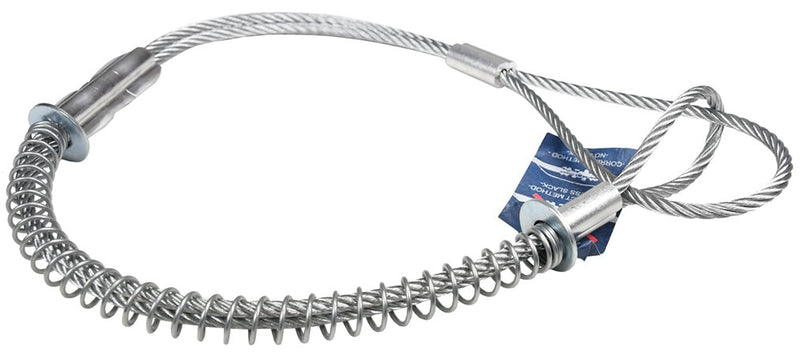

  • King safety cable reaches across the hose fittings to provide standby safety for hose. Spring-loaded loops in the cable ends open easily to pass over the couplings for a firm grip on the hose.
  • Thoroughly tested with years of service. A positive safeguard for air hose connections - helps you meet today's safety standards.
  • Highly resistant to rust and corrosion.
Installation:

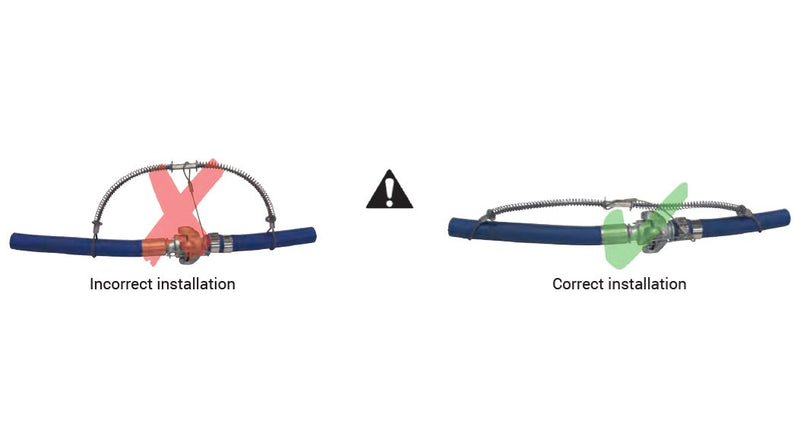

  • Must be installed in the extended position (no slack).
  • No tools needed - easy to install and remove.
  • Cables are shipped with safety restraint labels attached.
Safety Notes:
  • King Safety cable must be installed in the extended position (no slack).
  • The Canada Occupational Safety and Health regulations Part XIII, 13:6b states: "Where an air hose is connected to a portable air powered tool used by an employee, a restraining device shall be attached to all hose connections, in order to prevent injury to an employee in the even of an accidental disconnection of a hose."
Part Number Material Hose I.D. Cable Length Maximum
Working
Pressure		 Construction
Wire Rope Ferrules Springs
WSR1 Steel 1/2" - 1-1/4" 1/8" 20-1/4" 200 PSI Galvanized Carbon Steel Aluminum Galvanized Carbon Steel
WSR3 Steel 1/2" - 2" 3/16" 38" 200 PSI Galvanized Carbon Steel Aluminum Galvanized Carbon Steel
WSR2 Steel 1-1/2" - 3" 1/4" 38" 200 PSI Galvanized Carbon Steel Aluminum Galvanized Carbon Steel
WSR4 Steel 4" 3/8" 44" 200 PSI Galvanized Carbon Steel Aluminum Galvanized Carbon Steel

WSR1SS Stainless Steel 1/2" - 1-1/4" 1/8" 20-1/4" 200 PSI 304 Stainless Steel Copper 304 Stainless Steel
WSR3SS Stainless Steel 1/2" - 2" 3/16" 28" 200 PSI 304 Stainless Steel Copper 304 Stainless Steel
WSR2SS Stainless Steel 1-1/2" - 3" 1/4" 38" 200 PSI 304 Stainless Steel Copper 304 Stainless Steel
WSR4SS Stainless Steel 4" 3/8" 44" 200 PSI 304 Stainless Steel Copper 304 Stainless Steel
