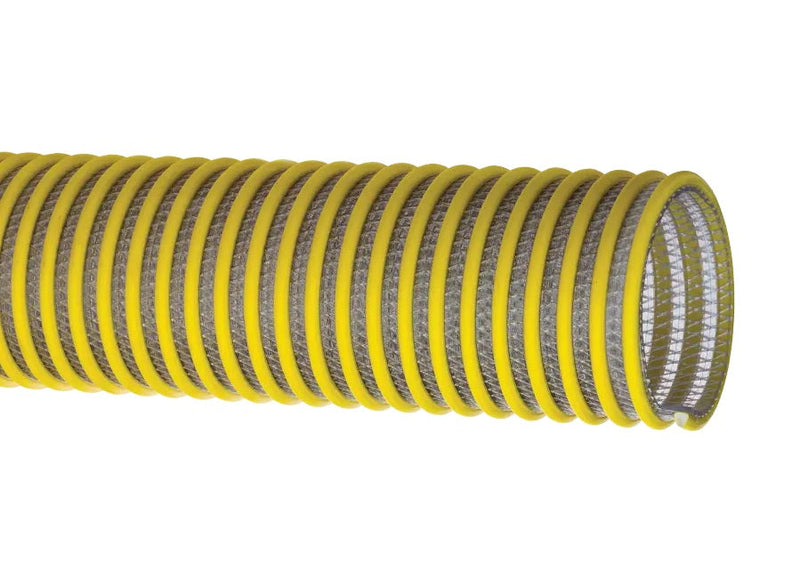

WST-SLR150X100 Tigerflex® SOLARGUARD™ by Kuriyama | WST-SLR™ Series | Heavy-Duty Fabric Reinforced Liquid Suction & Discharge Hose with High UV Resistance | PVC | 1-1/2" ID | 1.95" OD | 100ft Length

WST-SLR150X100 Tigerflex® SOLARGUARD™ by Kuriyama | WST-SLR™ Series | Heavy-Duty Fabric Reinforced Liquid Suction & Discharge Hose with High UV Resistance | PVC | 1-1/2" ID | 1.95" OD | 100ft Length

Save $136.16 Save $136.16
$673.76
$673.76 - $673.76
$673.76
$537.60
$537.60 - $537.60
$537.60
p>Kuriyama of America Inc.
Tigerflex® | SOLARGUARD™ WST-SLR™ Series | Heavy-Duty Fabric Reinforced Liquid Suction & Discharge Hose with High UV Resistance | PVC

Designed for demanding water transfer.

Ideal for fish suction, irrigation lines, dewatering and trash pumps, and heavy-duty suction and discharge applications.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: WST-SLR150X100 Kuriyama | 100 |
Brand: Tigerflex
Series: WST-SLR Series
Hose Color(s): Yellow & Clear/Semi-Clear
Internal Diameter: 1.50in
Outer Diameter: 1.95in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection
PVC Suction & Discharge Hose

Tigerflex® Solarguard

A heavy-duty, double-ply PVC suction hose with a transparent, UV-protected wall that lets you see the flow. Polyester reinforcement and a rigid PVC helix handle full-vacuum suction and higher-pressure discharge for dewatering, irrigation, and water-transfer work.

✓

UV Protected

Retains ~97% tensile strength after prolonged UV exposure

◎

See-the-Flow

Transparent wall confirms material flow at a glance

⚙

Suction & Discharge

Full vacuum plus higher-pressure discharge

★

Made in the USA

Manufactured in the United States

1

What is this product used for?
  • Fish suction
  • Irrigation lines
  • Pumps — rental & construction dewatering
  • Pumps — trash
  • Suction & discharge
  • Water suction — heavy duty
2

What are the key specifications?
Tube

Double-ply PVC

Reinforcement

Polyester fabric with rigid PVC helix

Service Temperature

-4°F to +150°F (-20°C to +65°C) — application dependent

Compliance

Phthalate free · RoHS

3

What are the main product features?
  • Advanced UV Protection — Specially formulated to resist the cracking caused by damaging UV light. In independent testing, the Solarguard material retained 97% of its original tensile strength after prolonged UV exposure, versus only 55% for comparable PVC hoses.
  • Transparent Construction — "See-the-flow" wall allows visual confirmation of material moving through the hose.
  • Fabric Reinforcement — High-tensile polyester yarn jacket handles both suction and higher-pressure discharge applications.
  • Easy Slide "Safety Yellow" Helix — Highly visible helix makes the hose easy to identify; the rigid design protects the tube from cover wear and slides easily over rough surfaces.
  • Made in the USA — Manufactured in the United States.
4

Which sizes or configurations are available?
Part Number ID OD Working Pressure (PSI) Vacuum (in Hg) Min. Bend
Radius (in)		 Weight
(lbs/ft)
in mm in mm 68°F 104°F 68°F 104°F
WST-SLR150X100 1-1/2 38.1 1.95 49.5 110 70 Full 28 2.5 0.42
WST-SLR200X100 2 50.8 2.60 66.0 100 65 Full 28 4 0.74
WST-SLR300X100 3 76.2 3.62 92.0 100 50 Full 28 6 1.13
WST-SLR400X100 4 101.6 4.76 121.0 75 37 Full 28 8 1.74
WST-SLR600X100 6 152.4 7.17 182.1 70 35 28 25 13 3.88
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Consult the specifications guide for phthalate-free and RoHS compliance details and additional product information.

i
UV performance figures are based on independent third-party test reports believed to be complete and accurate; no warranty is expressed or implied, as application parameters such as temperature, stress, strain, and chemical exposure vary widely. Service life may vary with operating conditions and the material being conveyed.

How is this product sold?

Sold in 100 ft coil lengths, in sizes from 1-1/2" through 6".
