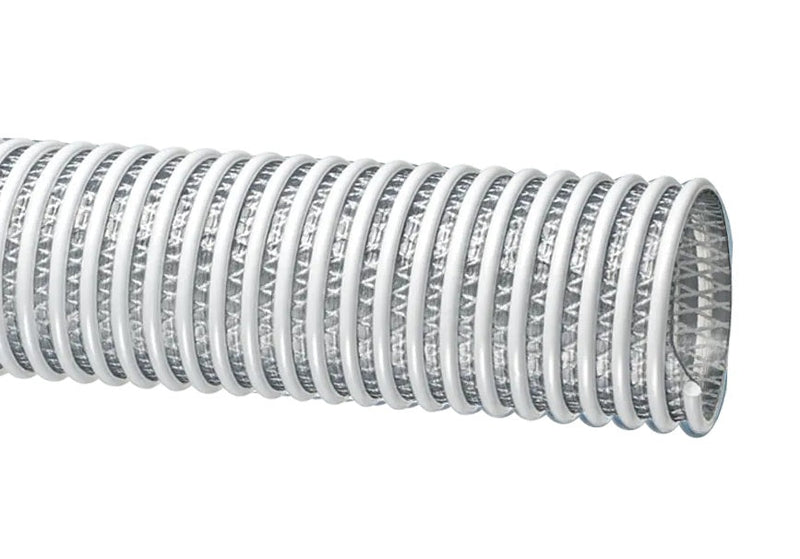

WSTF200X100 Tigerflex® by Kuriyama | WSTF™ Series | Food Grade Fabric Reinforced Liquid Suction & Discharge Hose | PVC | 2" ID | 2.60" OD | 100ft Length

WSTF200X100 Tigerflex® by Kuriyama | WSTF™ Series | Food Grade Fabric Reinforced Liquid Suction & Discharge Hose | PVC | 2" ID | 2.60" OD | 100ft Length

Save $251.26 Save $251.26
$899.86
$899.86 - $899.86
$899.86
$648.60
$648.60 - $648.60
$648.60
100 ft | $6.49 / ft

Kuriyama Tigerflex WSTF™ Series Food Grade PVC Fabric Reinforced Suction & Discharge Hose

Specifications for Variant SKU: WSTF200X100 Kuriyama | 100 |
Brand: Tigerflex
Series: TAQ Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 2in
Outer Diameter: 2.60in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, BSE/TSE, FDA 21 CFR Part 170.199, FDA 21 CFR Part 177.2800 (5)(i), FDA 21 CFR Part 170.39, RoHS Compliant, Applicable USDA Requirements
Special Properties: Outer Helix Protection
Food Grade Suction & Discharge Hose

Kuriyama Tigerflex® WSTF Series

Transparent, fabric-reinforced PVC hose designed for suction and discharge of food-grade liquids, ice and similar materials.

✓

Food Grade

FDA, USDA and 3-A compliant materials

◎

See the Flow

Transparent construction provides visual confirmation

⚙

Reinforced

Polyester fabric with a rigid PVC helix

★

Made in USA

Manufactured in the United States

1

What is this product used for?
  • Wine, beer and juice transfer
  • Food-grade liquid transfer
  • Ice transfer
  • Suction applications
  • Discharge applications
2

What are the key specifications?
Tube

Double-ply PVC

Reinforcement

Polyester fabric and rigid PVC helix

Cover

Not specified

Temperature Range

-4°F (-20°C) to +150°F (+65°C)

Construction

Transparent, fabric-reinforced PVC

Country of Origin

Made in the USA

3

What are the main product features?
  • Food-Grade Materials — Complies with applicable FDA, 3-A and USDA requirements.
  • Fabric Reinforcement — High-tensile-strength, food-grade polyester yarn reinforcement supports suction and higher-pressure discharge applications.
  • Transparent Construction — See-the-flow design allows visual confirmation of material movement.
  • Easy-Slide Helix — Rigid helix helps protect the hose tube from wear and allows the hose to slide more easily over rough surfaces.
4

Which sizes are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F lbs/ft
WSTF150X100 1-1/2" 38.1 1.95" 49.5 110 PSI 70 PSI Full 28 in Hg 2-1/2" 0.42
WSTF200X100 2" 50.8 2.60" 66.0 100 PSI 65 PSI Full 28 in Hg 4" 0.74
WSTF300X100 3" 76.2 3.62" 92.0 100 PSI 50 PSI Full 28 in Hg 6" 1.13
WSTF400X100 4" 101.6 4.76" 121.0 75 PSI 37 PSI Full 28 in Hg 8" 1.74
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 100-foot lengths.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
