X-1212-MNPT Alfagomma by Kuriyama | X Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x -12 Male NPTF 60° Seat Interlock | Steel

X-1212-MNPT Alfagomma by Kuriyama | X Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x -12 Male NPTF 60° Seat Interlock | Steel

Save $4.66 Save $4.66
$16.31
$16.31 - $16.31
$16.31
$11.65
$11.65 - $11.65
$11.65

Kuriyama of America Inc.
Alfagomma | X Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male NPTF 60° Seat Interlock
Specifications for Variant SKU: X-1212-MNPT Kuriyama
Brand: Alfagomma
Series: X Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Male NPTF
Material(s): Steel
Hydraulic Hose Fittings

X-Series MNPT® Interlock

Two-piece interlock fitting with Male NPTF 60° seat for spiral wire reinforced hoses. Alfagomma Top Coat finish delivers 500+ hours corrosion protection.

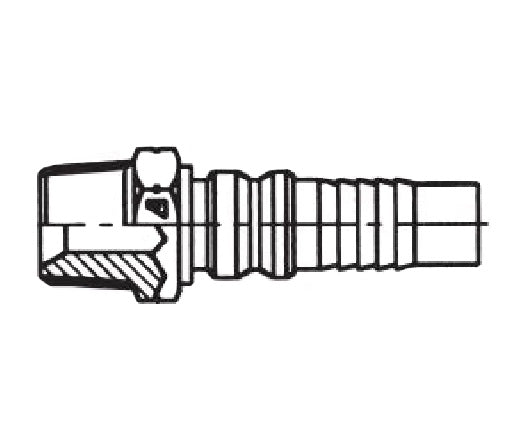

X-Series MNPT interlock fitting dimensions diagram
⚙

Interlock Insert

Two-piece for spiral wire hoses

✓

Male NPTF

60° seat thread connection

★

500+ Hrs Salt Spray

Alfagomma Top Coat corrosion protection

⚠

Skive Required

Internal & external skiving needed

Assembly & Finish

specs & ratings
Hose Compatibility Spiral wire reinforced hoses
Required Ferrule XF1 or XF2 Interlock ferrule Preparation Internal & external skiving required
Coating Alfagomma Top Coat Test Standards ASTM B117-03 & UNI ISO 9227
White Rust Resistance 500+ hours salt spray fog Red Rust Resistance 1000+ hours

Product Catalog

2 sizes
Part # Dash Hose ID Hose ID (mm) F Thread C — Cut-Off Hex (CH1) Weight
X-0808-MNPT 08 1/2" 12.7mm 1/2-14 32.0mm 22mm 0.21 lbs
X-1212-MNPT 12 3/4" 19.0mm 3/4-14 32.0mm 27mm 0.35 lbs
