XF2-12 Alfagomma by Kuriyama | XF2 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule | -12 Hose Dash Size | 3/4" Hose ID | Steel

Save $2.81

$9.84

$9.84 - $9.84

$9.84

$7.03

$7.03 - $7.03

$7.03

Kuriyama of America Inc.

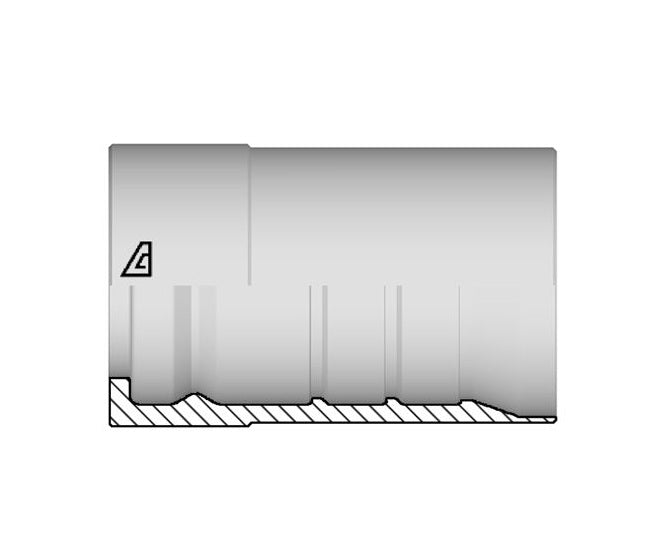

Alfagomma | XF2 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule

Specifications for Variant SKU: XF2-12 Kuriyama
Brand:	Alfagomma
Series:	XF2 Series
Material(s):	Steel
Compatible with the following Series:	ABT4K Series \| ABT5K Series \| ABT5KST Series \| ABT6K Series \| ABT6KST Series \| ABTP5K Series \| Flexor Rig Series \| WB10 Series

About XF1 Series Fittings:
Two piece Interlock ferrule for use with "X" Interlock insert on spiral wire reinforced hoses. Requires internal and external skiving.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			B OD	L Length	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm)	(mm)	lbs/each
XF2-08	08	1/2"	12.7mm	30mm	52.5mm	0.25 lbs
XF2-12	12	3/4"	19.0mm	38mm	60.1mm	0.32 lbs
XF2-16	16	1"	25.4mm	46mm	74.6mm	0.59 lbs
