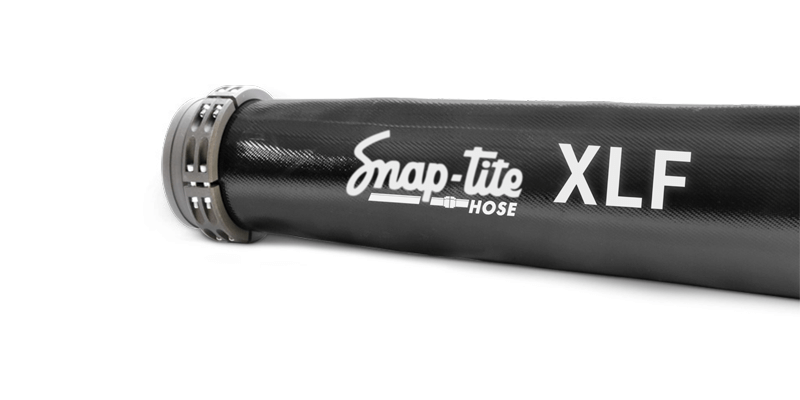

XLF20X100K15N by Snap-Tite | XLF Series | Polyurethane Covered Hose Assembly with Polyester Reinforcement | 2" Hose I.D. | 1-1/2" Male NH x 1-1/2" Female NH Couplings | 300 PSI | Black | 100ft Length

Save $220.80

$772.80

$772.80 - $772.80

$772.80

$552.00

$552.00 - $552.00

$552.00

Snap-Tite Hose
XLF™ - DURABLE & RESISTANT TO PUNCTURE HOSE

This hose may take 1-2 weeks to ship.

Package Quantity: 100 FT

Specifications for Variant SKU: XLF20X100K15N Snap-Tite
Series:	XLF Series
Hose Color(s):	Black
Internal Diameter:	2in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Ends Configuration:	1-1/2in Male NH, 1-1/2in Female NH
Material(s):	Aluminum
Applicable Specs & Approvals:	ASTM D1149-64, NFPA 1960

Description:
Model:	XLF™
Basic Construction:	Polyurethane extruded thru-the-weave with a polyester reinforcement.
Application:	Industrial, Agriculture, Military
Colors:	Black, Blue
Temperature Range:	-60° F - 180° F
The XLF™ is a polyurethane thru-the-weave large diameter hose engineered for long-lasting durability and performance in the field. Originally designed to replace metal pipes used in the fracking industry for transfer of large volumes of water, it makes a great main feeder line. The XLF™ is designed for extreme resistance to abrasion and punctures with little friction loss - all while being exceptionally lightweight.
Features:
Multi-purpose large diameter hose for oil/gas, water transfer, dewatering, refineries for tank fire suppression, nuclear, agriculture, military, and water/sewer bypasses during construction. The XLF™ inner jacket is designed with 100% high tenacity polyester yarn and extruded thru-the-weave polyurethane - a unified, construction that ensures no delamination and provides abrasion protection. Hose can withstand exposure to most hydro-carbons, gasoline oils, alkalis, and grease. Hose shows no ozone exposure when subjected to testing in accordance with ASTM D1149-64, 100 PPHM /122 degrees F/70 hours. Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certified quality assurance system.

Black
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1-1/2"	XLF15X25K15N	XLF15X50K15N	XLF15X100K15N	300 psi	600 psi	900 psi	0.24	750,000+
1-1/2"	XLF15X25K15NBR	XLF15X50K15NBR	XLF15X100K15NBR	300 psi	600 psi	900 psi	0.24	750,000+
2"	XLF20X25K15N	XLF20X50K15N	XLF20X100K15N	300 psi	600 psi	900 psi	0.31	750,000+
2-1/2"	XLF25X25K25N	XLF25X50K25N	XLF25X100K25N	300 psi	600 psi	900 psi	0.53	750,000+
2-1/2"	XLF25X25K25NBR	XLF25X50K25NBR	XLF25X100K25NBR	300 psi	600 psi	900 psi	0.53	750,000+
3"	XLF30X25K25N	XLF30X50K25N	XLF30X100K25N	200 psi	400 psi	600 psi	0.62	750,000+
4"	XLF40X25K40S	XLF40X50K40S	XLF40X100K40S	200 psi	400 psi	500 psi	0.86	750,000+
5"	XLF50X25K50S	XLF50X50K50S	XLF50X100K50S	200 psi	400 psi	600 psi	1.36	750,000+
6"	XLF60X25K60S	XLF60X50K60S	XLF60X100K60S	200 psi	400 psi	600 psi	1.40	750,000+
7-1/4"	XLF72X25K60S	XLF72X50K60S	XLF72X100K60S	300 psi	600 psi	750 psi	2	750,000+
8"	XLF80X25K80S	XLF80X50K80S	XLF80X100K80S	225 psi	450 psi	675 psi	2.4	750,000+
10"	XLF100X25K100S	XLF100X50K100S	XLF100X100K100S	200 psi	400 psi	600 psi	2.7	750,000+

Blue
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1-1/2"	XLF15X25B15N	XLF15X50B15N	XLF15X100B15N	300 psi	600 psi	900 psi	0.24	750,000+
1-1/2"	XLF15X25B15NBR	XLF15X50B15NBR	XLF15X100B15NBR	300 psi	600 psi	900 psi	0.24	750,000+
2"	XLF20X25B15N	XLF20X50B15N	XLF20X100B15N	300 psi	600 psi	900 psi	0.31	750,000+
2-1/2"	XLF25X25B25N	XLF25X50B25N	XLF25X100B25N	300 psi	600 psi	900 psi	0.53	750,000+
2-1/2"	XLF25X25B25NBR	XLF25X50B25NBR	XLF25X100B25NBR	300 psi	600 psi	900 psi	0.53	750,000+
3"	XLF30X25B25N	XLF30X50B25N	XLF30X100B25N	200 psi	400 psi	600 psi	0.62	750,000+
4"	XLF40X25B40S	XLF40X50B40S	XLF40X100B40S	200 psi	400 psi	500 psi	0.86	750,000+
5"	XLF50X25B50S	XLF50X50B50S	XLF50X100B50S	200 psi	400 psi	600 psi	1.36	750,000+
6"	XLF60X25B60S	XLF60X50B60S	XLF60X100B60S	200 psi	400 psi	600 psi	1.40	750,000+
7-1/4"	XLF72X25B60S	XLF72X50B60S	XLF72X100B60S	300 psi	600 psi	750 psi	2	750,000+
8"	XLF80X25B80S	XLF80X50B80S	XLF80X100B80S	225 psi	450 psi	675 psi	2.4	750,000+
10"	XLF100X25B100S	XLF100X50B100S	XLF100X100B100S	200 psi	400 psi	600 psi	2.7	750,000+

*1-year warranty.

*Potable water approved: Yes

*Quality Management System Certification: ISO 9001:2015 Registration # 11-R1045
