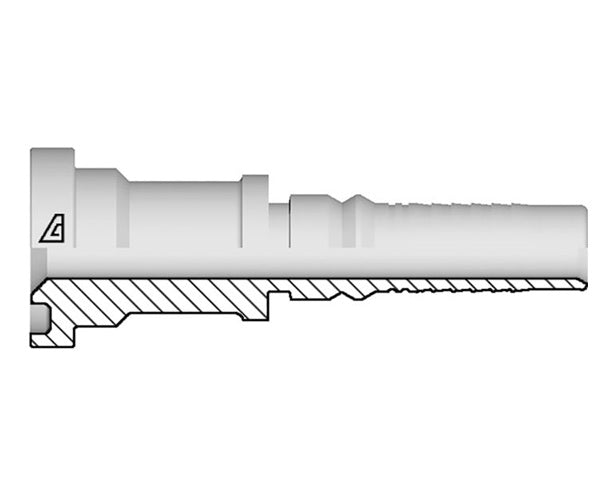

Y-0808-C61S Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -08 Code 61 Flange Interlock x -08 Hose ID | Steel

Save $8.38

$29.33

$29.33 - $29.33

$29.33

$20.95

$20.95 - $20.95

$20.95

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Code 61 Flange Interlock x Hose Barb

SAE J518

Specifications for Variant SKU: Y-0808-C61S Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Code 61 Flange, 1/2in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	Max Working Pressure	Weight
Part Number	Dash Size	in	mm	in	mm	mm	PSI	lbs/each
Y-0808-C61S	-08	1/2"	12.7mm	1.19"	30.2mm	39.0mm	5000 PSI	0.32 lbs
Y-1212-C61S	-12	3/4"	19.0mm	1.50"	38.1mm	40.0mm	5000 PSI	0.50 lbs
Y-1616-C61S	-16	1"	25.4mm	1.75"	44.5mm	49.0mm	5000 PSI	0.78 lbs
Y-2020-C61S	-20	1-1/4"	31.8mm	2.00"	50.8mm	52.7mm	4000 PSI	1.09 lbs
Y-2424-C61S	-24	1-1/2"	38.1mm	2.38"	60.3mm	56.0mm	3000 PSI	1.42 lbs
Y-3232-C61S	-32	2"	50.8mm	2.81"	71.4mm	69.0mm	3000 PSI	2.62 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
