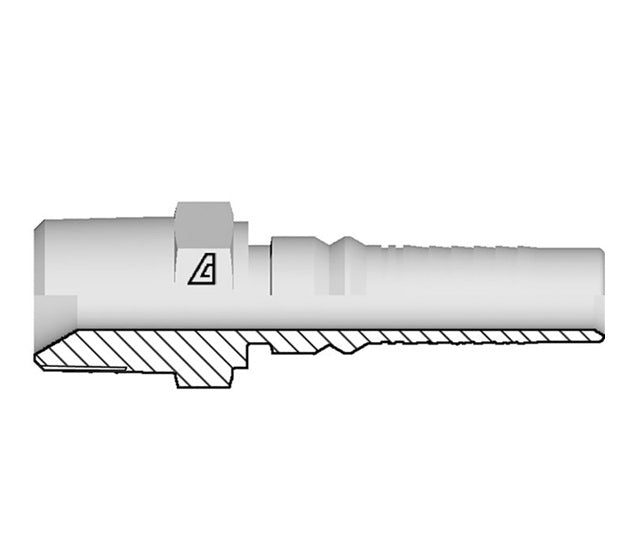

Y-0808-MNPT Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Male NPTF 60° Seat Interlock x -08 Hose ID | Steel

Y-0808-MNPT Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Male NPTF 60° Seat Interlock x -08 Hose ID | Steel

Save $4.00 Save $4.00
$13.99
$13.99 - $13.99
$13.99
$9.99
$9.99 - $9.99
$9.99

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Male NPTF 60° Seat Interlock x Hose Barb
Specifications for Variant SKU: Y-0808-MNPT Kuriyama
Brand: Alfabiotech Evolution
Series: Y Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   E4K Series  |   E5.5K Series
Part Number Hose ID Size F Thread C Cut-Off Factor Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm lbs/each
Y-0606-MNPT -06 3/8" 9.5mm -06 3/8-19 26.0mm 19mm 0.17 lbs
Y-0808-MNPT -08 1/2" 12.7mm -08 1/2-14 32.0mm 22mm 0.20 lbs
Y-1212-MNPT -12 3/4" 19.0mm -12 3/4-14 32.0mm 27mm 0.32 lbs
Y-1616-MNPT -16 1" 25.4mm -16 1-11-1/2 42.0mm 36mm 0.63 lbs
Y-2020-MNPT -20 1-1/4" 31.8mm -20 1-1/4-11-1/2 46.2mm 46mm 1.07 lbs
Y-2424-MNPT -24 1-1/2" 38.1mm -24 1-1/2-11-1/2 48.0mm 50mm 1.44 lbs
Y-3232-MNPT -32 2" 50.8mm -32 2-11/12 51.0mm 65mm 2.43 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
