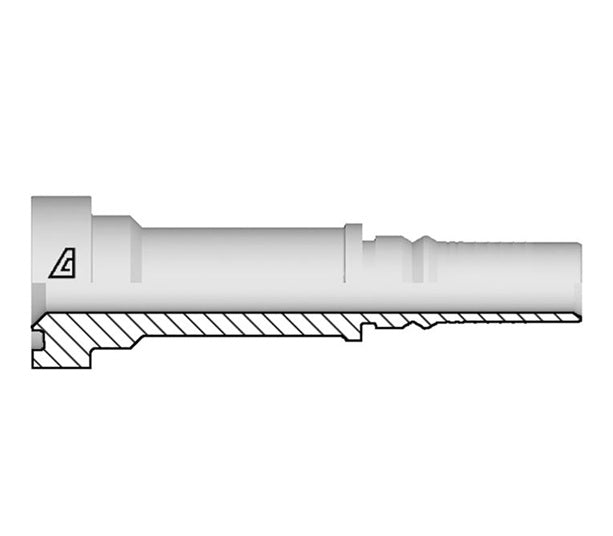

Y-1212-CFLS Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -12 CAT Flange Interlock x -12 Hose ID | 6000 PSI | Steel

Save $13.72

$48.02

$48.02 - $48.02

$48.02

$34.30

$34.30 - $34.30

$34.30

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | CAT Flange Interlock x Hose Barb

6000 PSI

Specifications for Variant SKU: Y-1212-CFLS Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in CAT Flange, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	T	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	lbs/each
Y-1212-CFLS	-12	3/4"	19.0mm	1.63"	41.3mm	82.0mm	14.3mm	0.88 lbs
Y-1616-CFLS	-16	1"	25.4mm	1.88"	47.6mm	90.0mm	14.3mm	1.31 lbs
Y-2020-CFLS	-20	1-1/4"	31.8mm	2.13"	54.0mm	86.2mm	14.3mm	1.67 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
