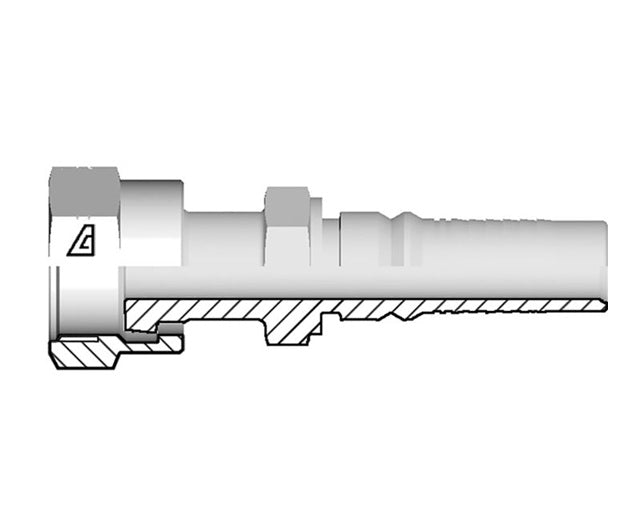

Y-1616-FOFS Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Double Hex | -16 Female ORFS Interlock x -16 Hose ID | Steel

Save $2.58

$23.18

$23.18 - $23.18

$23.18

$20.60

$20.60 - $20.60

$20.60

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Double Hex Interlock | Female ORFS x Hose Barb

Quantity

Specifications for Variant SKU: Y-1616-FOFS Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Shape (Orientation):	Straight
Ends Configuration:	1in Female O-Ring Face Seal, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia. CH	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size(in) - TPI	mm	mm	mm	lbs/each
Y-1212-FOFS	-12	3/4"	19.0mm	-12	1-3/16-12	40.0mm	30mm	36mm	0.58 lbs
Y-1616-FOFS	-16	1"	25.4mm	-16	1-7/16-12	47.0mm	36mm	41mm	0.90 lbs
Y-2020-FOFS	-20	1-1/4"	31.8mm	-20	1-11/16-12	47.2mm	46mm	50mm	1.36 lbs
Y-2424-FOFS	-24	1-1/2"	38.1mm	-24	2-12	52.0mm	50mm	60mm	2.03 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
