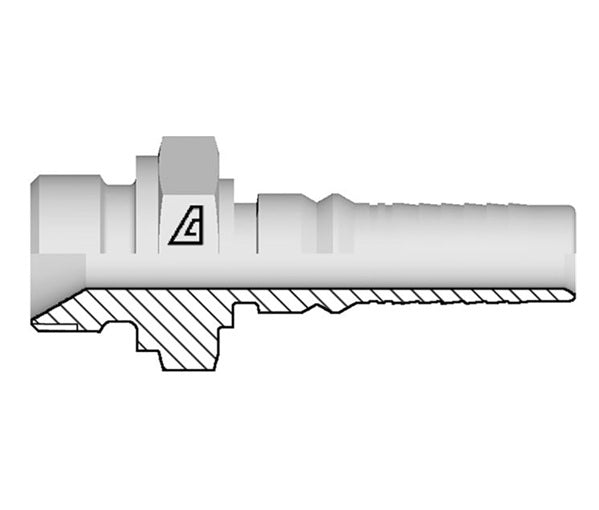

Y-1616-MBPP Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Male BSPP 60° Seat Interlock x -16 Hose ID | Steel

Y-1616-MBPP Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Male BSPP 60° Seat Interlock x -16 Hose ID | Steel

Save $8.81 Save $8.81
$30.83
$30.83 - $30.83
$30.83
$22.02
$22.02 - $22.02
$22.02

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Male BSPP 60° Seat Interlock x Hose Barb
Specifications for Variant SKU: Y-1616-MBPP Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Ends Configuration: 1in Male BSPP, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   E4K Series  |   E5.5K Series
Part Number Hose ID Size F Thread C Cut-Off Factor Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm lbs/each
Y-1212-MBPP -12 3/4" 19.0mm -12 3/4-14 34.0mm 32mm 0.38 lbs
Y-1616-MBPP -16 1" 25.4mm -16 1-11 40.0mm 41mm 0.70 lbs
Y-2020-MBPP -20 1-1/4" 31.8mm -20 1-1/4-11 45.2mm 50mm 1.15 lbs
