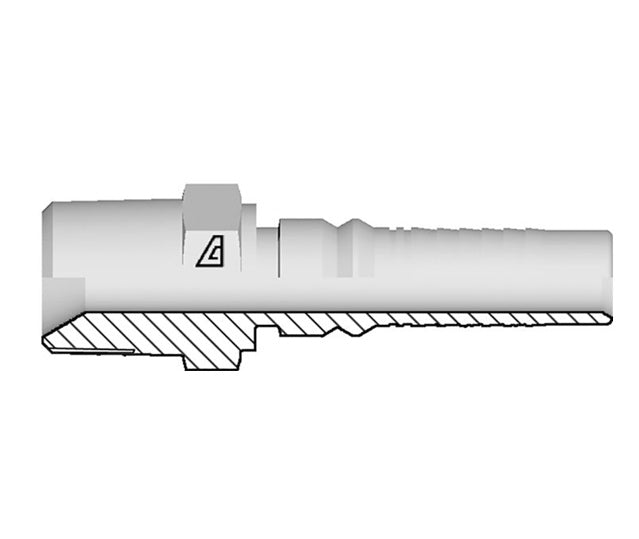

Y-1616-MBPT Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Male BSPT / JIS Interlock x -16 Hose ID | Steel

Name: Y-1616-MBPT Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Male BSPT / JIS Interlock x -16 Hose ID | Steel
Brand: Kuriyama
SKU: Y-1616-MBPT Kuriyama
Price: 21.68 USD
Availability: InStock

Save $8.67

$30.35

$30.35 - $30.35

$30.35

$21.68

$21.68 - $21.68

$21.68

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Male BSPT / JIS Interlock x Hose Barb

Specifications for Variant SKU: Y-1616-MBPT Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	lbs/each
Y-1212-MBPT	-12	3/4"	19.0mm	-12	3/4-14	32.0mm	27mm	0.34 lbs
Y-1616-MBPT	-16	1"	25.4mm	-16	1-11	41.0mm	36mm	0.71 lbs
Y-2020-MBPT	-20	1-1/4"	31.8mm	-20	1 1/4-11	46.2mm	46mm	1.28 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
