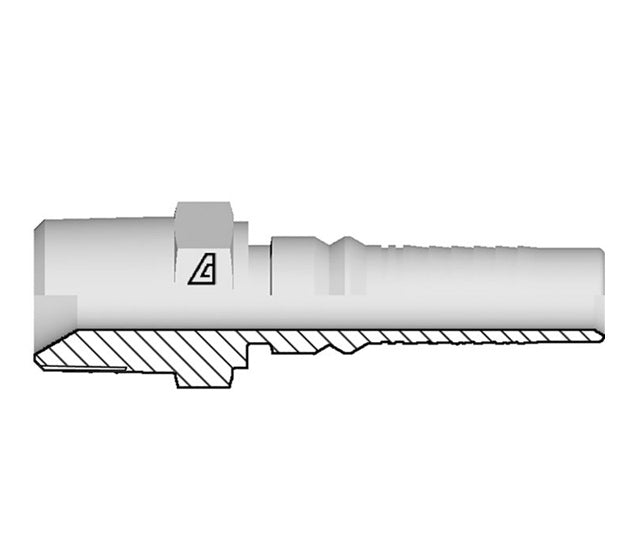

Y-1616-MNPT Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Male NPTF 60° Seat Interlock x -16 Hose ID | Steel

Name: Y-1616-MNPT Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Male NPTF 60° Seat Interlock x -16 Hose ID | Steel
Brand: Kuriyama
SKU: Y-1616-MNPT Kuriyama
Price: 17.71 USD
Availability: InStock

Save $7.08

$24.79

$24.79 - $24.79

$24.79

$17.71

$17.71 - $17.71

$17.71

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Male NPTF 60° Seat Interlock x Hose Barb

Specifications for Variant SKU: Y-1616-MNPT Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Shape (Orientation):	Straight
Ends Configuration:	1in Male NPTF, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	lbs/each
Y-0606-MNPT	-06	3/8"	9.5mm	-06	3/8-19	26.0mm	19mm	0.17 lbs
Y-0808-MNPT	-08	1/2"	12.7mm	-08	1/2-14	32.0mm	22mm	0.20 lbs
Y-1212-MNPT	-12	3/4"	19.0mm	-12	3/4-14	32.0mm	27mm	0.32 lbs
Y-1616-MNPT	-16	1"	25.4mm	-16	1-11-1/2	42.0mm	36mm	0.63 lbs
Y-2020-MNPT	-20	1-1/4"	31.8mm	-20	1-1/4-11-1/2	46.2mm	46mm	1.07 lbs
Y-2424-MNPT	-24	1-1/2"	38.1mm	-24	1-1/2-11-1/2	48.0mm	50mm	1.44 lbs
Y-3232-MNPT	-32	2"	50.8mm	-32	2-11/12	51.0mm	65mm	2.43 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
