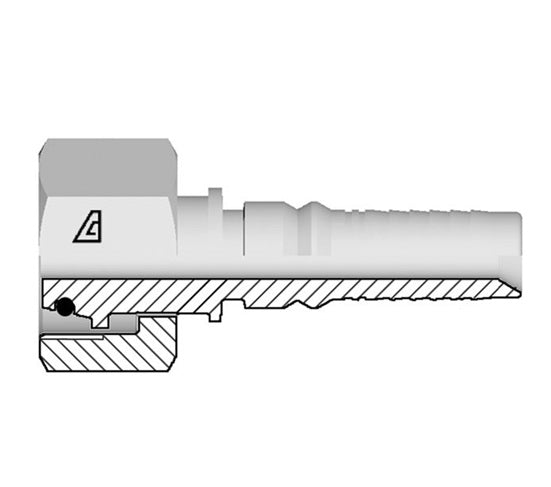

Y-2042-FMOH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M42 Female Metric O-Ring Swivel Interlock x -20 Hose ID | Steel

Y-2042-FMOH Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M42 Female Metric O-Ring Swivel Interlock x -20 Hose ID | Steel

Save $24.37 Save $24.37
$85.30
$85.30 - $85.30
$85.30
$60.93
$60.93 - $60.93
$60.93

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Female Metric O-Ring Swivel Interlock x Hose Barb

DIN 3865 Heavy
Specifications for Variant SKU: Y-2042-FMOH Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   E4K Series  |   E5.5K Series
Part Number Hose ID Size F Thread Tube OD C
Cut-Off
Factor		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm (mm) x TP (mm) mm mm mm lbs/each
Y-0824-FMOH -08 1/2" 12.7mm M24x1.5 16mm 29.8mm 30mm 0.31 lbs
Y-1030-FMOH -10 5/8" 25.9mm M30x2 20mm 34.4mm 36mm 0.51 lbs
Y-1230-FMOH -12 3/4" 19.0mm M30x2 20mm 37.5mm 36mm 0.6 lbs
Y-1236-FMOH -12 3/4" 19.0mm M36x2 25mm 37.6mm 46mm 0.84 lbs
Y-1636-FMOH -16 1" 25.4mm M36x2 25mm 38.8mm 46mm 1.03 lbs
Y-1642-FMOH -16 1" 25.4mm M42x2 30mm 40.7mm 50mm 1.08 lbs
Y-2042-FMOH -20 1-1/4" 31.8mm M42x2 30mm 32.2mm 50mm 1.39 lbs
Y-2052-FMOH -20 1-1/4" 31.8mm M52x2 38mm 45.3mm 60mm 1.72 lbs
Y-2052-FMOH -24 1-1/2" 38.1mm M52x2 38mm 50.8mm 60mm 2.26 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
