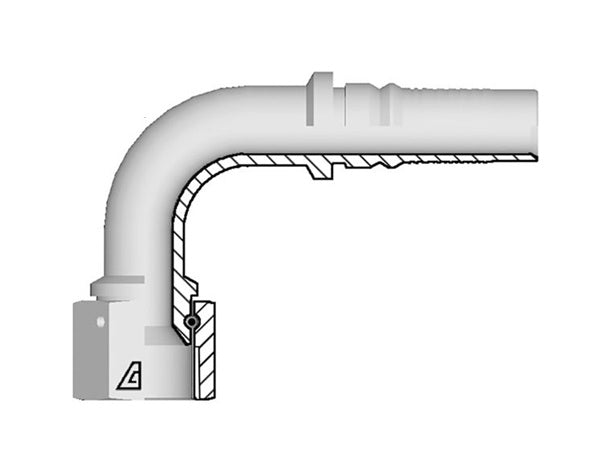

Y-2424-FBO9 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -24 Female BSP Swivel 60° Cone Interlock x -24 Hose ID | Steel

Name: Y-2424-FBO9 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -24 Female BSP Swivel 60° Cone Interlock x -24 Hose ID | Steel
Brand: Kuriyama
SKU: Y-2424-FBO9 Kuriyama
Price: 93.23 USD
Availability: InStock

Save $37.29

$130.52

$130.52 - $130.52

$130.52

$93.23

$93.23 - $93.23

$93.23

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Female BSP Swivel 60° Cone Interlock x Hose Barb

Specifications for Variant SKU: Y-2424-FBO9 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	mm	lbs/each
Y-1212-FBO9	-12	3/4"	19.0mm	-12	3/4-14	58mm	61mm	32mm	0.74 lbs
Y-1616-FBO9	-16	1"	25.4mm	-16	1-11	75mm	71mm	38mm	1.19 lbs
Y-2020-FBO9	-20	1-1/4"	31.8mm	-20	1 1/4-11	79mm	83mm	50mm	1.91 lbs
Y-2424-FBO9	-24	1-1/2"	38.1mm	-24	1 1/2-11	93mm	96mm	55mm	2.95 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
