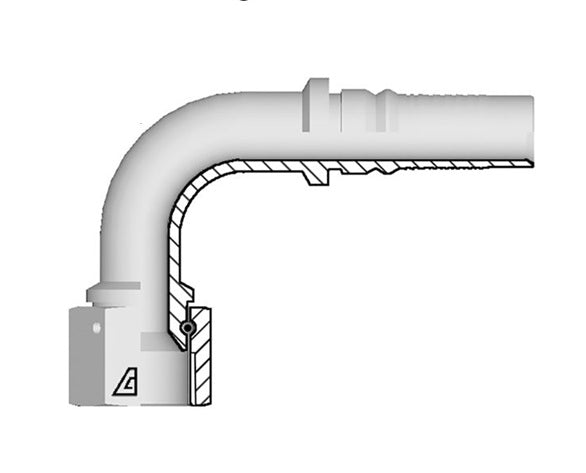

Y-2424-FJ9M Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -24 Female JIC 37° Swivel Seat Interlock x -24 Hose ID | Steel

Name: Y-2424-FJ9M Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -24 Female JIC 37° Swivel Seat Interlock x -24 Hose ID | Steel
Brand: Kuriyama
SKU: Y-2424-FJ9M Kuriyama
Price: 121.98 USD
Availability: InStock

Save $48.79

$170.77

$170.77 - $170.77

$170.77

$121.98

$121.98 - $121.98

$121.98

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Female JIC 37° Swivel Seat Interlock x Hose Barb

Specifications for Variant SKU: Y-2424-FJ9M Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Female JIC, 1-1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	mm	lbs/each
Y-1212-FJ9M	-12	3/4"	19.0mm	-12	1-1/16-12	45.0mm	57.0mm	32mm	0.66 lbs
Y-1616-FJ9M	-16	1"	25.4mm	-16	1-5/16-12	71.0mm	67.0mm	38mm	1.16 lbs
Y-2020-FJ9M	-20	1-1/4"	31.8mm	-20	1-5/8-12	79.2mm	78.0mm	50mm	1.86 lbs
Y-2424-FJ9M	-24	1-1/2"	38.1mm	-24	1-7/8-12	94.5mm	92.0mm	55mm	2.84 lbs
Y-3232-FJ9M	-32	2"	50.8mm	-32	2-1/2-12	146.0mm	120.5mm	70mm	5.51 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
