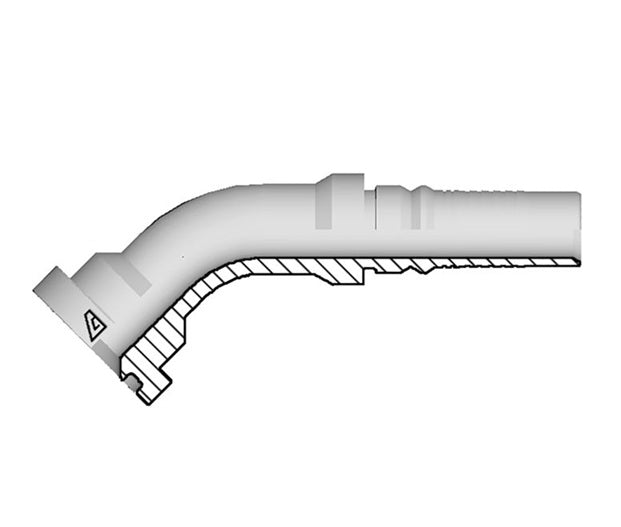

Y-3232-C614 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -32 Code 61 Flange Interlock x -32 Hose ID | Steel

Save $65.04

$227.65

$227.65 - $227.65

$227.65

$162.61

$162.61 - $162.61

$162.61

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Code 61 Flange Interlock x Hose Barb

SAE J518

Specifications for Variant SKU: Y-3232-C614 Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Shape (Orientation):	45 Degree
Ends Configuration:	2in Code 61 Flange, 2in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop	Max Working Pressure	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	PSI	lbs/each
Y-0808-C614	-08	1/2"	12.7mm	1.19"	30.2mm	51.0mm	22.0mm	5000 PSI	0.39 lbs
Y-1212-C614	-12	3/4"	19.0mm	1.50"	38.1mm	68.0mm	25.0mm	5000 PSI	0.62 lbs
Y-1616-C614	-16	1"	25.4mm	1.75"	44.5mm	82.5mm	29.0mm	5000 PSI	0.83 lbs
Y-2020-C614	-20	1-1/4"	31.8mm	2.00"	50.8mm	100.9mm	32.5mm	4000 PSI	1.58 lbs
Y-2424-C614	-24	1-1/2"	38.1mm	2.38"	60.3mm	103.7mm	43.0mm	3000 PSI	1.98 lbs
Y-3232-C614	-32	2"	50.8mm	2.81"	71.4mm	138.1mm	54.0mm	3000 PSI	3.82 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
